Restoring Color

Using the Color Restoration feature in Epson Scan, you can transform old, faded, or badly exposed photos into ones with true-to-life color and sharpness. You can restore printed photos, film, or slides automatically as you scan them.

Do not use Color Restoration to scan photos or film that is not faded; otherwise your scanned image may be discolored. Check the preview image to determine whether or not using Color Restoration improved your original.

See one of these sections for instructions on restoring colors.

Office Mode: This feature is not available in Office Mode. Change the scan mode to Home Mode or Professional Mode. See Changing the Scan Mode for instructions.

Color Restoration in Full Auto Mode

Place your original(s) on the document table. See one of these sections for instructions.

You can only scan 35 mm color film strip or color positive slides in Full Auto Mode. To scan other types of film, use Home Mode or Professional Mode. To change the scan mode, see Changing the Scan Mode.

Start Epson Scan. See Starting Epson Scan for instructions.

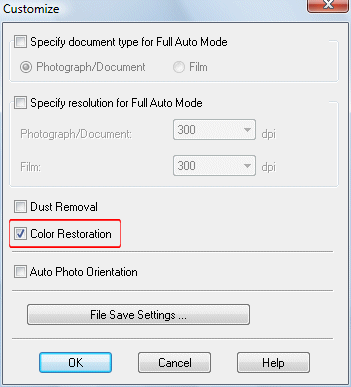

In the Full Auto Mode window, click Customize. The Customize window appears.

If you want to select the file save settings, click File Save Settings. See Selecting File Save Settings for instructions.

If you started Epson Scan from a TWAIN-compliant program like ArcSoft MediaImpression, the File Save Settings button does not appear.

When you finish making all the necessary settings, click OK to return to the Full Auto Mode window.

What happens next depends on how you started Epson Scan. See Finishing the Scan for instructions.

Color Restoration in Home Mode

Place your original(s) on the document table. See one of these sections for instructions.

Start Epson Scan. See Starting Epson Scan for instructions.

In the Home Mode window, select the Document Type, Image Type, and Destination settings. For details, see Scanning in Home Mode.

Click Preview to preview your image(s), then select your scan area. See Previewing and Adjusting the Scan Area for details.

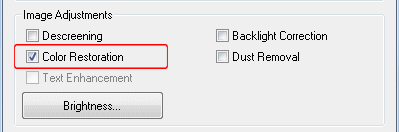

If you are scanning multiple images at the same time and you want to apply the Color Restoration feature to all of your images or scan areas, click All in the Preview window before you click the check box.

Make any other necessary image adjustments. See Adjusting the Color and Other Image Settings for details.

Size your image(s) as necessary. See Selecting the Scan Size for details.

What happens next depends on how you started Epson Scan. See Finishing the Scan for instructions.

Color Restoration in Professional Mode

Place your original(s) on the document table. See one of these sections for instructions.

Start Epson Scan. See Starting Epson Scan for instructions.

In the Professional Mode window, select the Document Type, Document Source, Auto Exposure Type (for scanning documents or photos) or Film Type (for scanning film or slides), Image Type, and Resolution settings. For details, see Scanning in Professional Mode.

Click Preview to preview your image(s), then select your scan area. See Previewing and Adjusting the Scan Area for details.

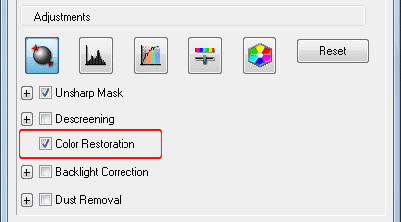

Scroll down to the Adjustments area and click the Color Restoration check box.

Make any other necessary image adjustments. See Adjusting the Color and Other Image Settings for details.

If you want to make more precise color adjustments, click the

Color Palette icon. See Using the Color Palette Feature (for Professional Mode Only) for instructions.

Size your image(s) as necessary. See Selecting the Scan Size for details.

What happens next depends on how you started Epson Scan. See Finishing the Scan for instructions.

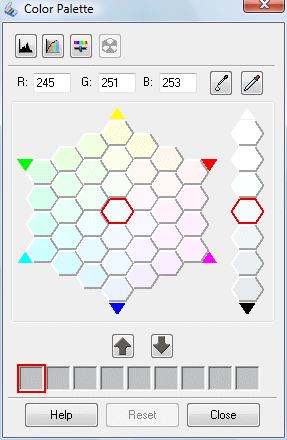

Using the Color Palette Feature (for Professional Mode Only)

Follow the steps in these sections to fine-tune the colors in your image using the Color Palette feature in Professional Mode.

This feature is available only after previewing your images, so make sure to click Preview to activate this feature.

Sampling a Color from an Image

Click the

color extractor icon. Your cursor changes to an eye dropper.

In the Preview window, click on the color in your image that needs adjustment.

The color you selected is moved to the center cell in the Color Palette window with variations in hue in the surrounding cells.

Select the cell that contains the hue you would like to use to adjust the color in your image. This color now becomes the color of the center cell and the color change is reflected in your image.

You can also use the cells to the right of the adjustment area to change the brightness, if necessary.

If you want to continue adjusting the color, repeat step 4.

If you want to save the color for future scans, click the

save icon. The color appears in the save area.

To load a previously saved color, select the color and click the

apply to palette icon.

When you are finished adjusting the color, click Close to return to the Professional Mode window.

For further details on using the Color Palette feature, see Epson Scan Help.

Applying a Color to an Image

Select the cell that contains the hue you would like to use to adjust the color in your image. This color now becomes the color of the center cell.

You can also use the cells to the right of the adjustment area to change the brightness, if necessary.

Click the

color applicator icon. Your cursor changes to a droplet.

In the Preview window, click on the color in your image that needs adjustment. The color change is reflected in your image.

If you want to continue adjusting the color, repeat steps 2 through 4.

If you want to save the color for future scans, click the

save icon. The color appears in the save area.

To load a previously saved color, select the color and click the

apply to palette icon.

When you are finished adjusting the color, click Close to return to the Professional Mode window.

For further details on using the Color Palette feature, see Epson Scan Help.
