Placing Film or Slides

Removing the Document Mat

To scan film strips or slides, you need to remove the document mat from the scanner cover. This uncovers the transparency unit so your scanner can use it to scan your film or slides.
Make sure the cover cable is connected to the scanner’s OPTION port.
Note:
Before connecting or disconnecting the cover cable, turn off the scanner using its power button.
Open the scanner cover and gently slide up the document mat to remove it. Also make sure the transparency unit transportation lock is unlocked.
Use a soft cloth to wipe the transparency unit window and the document table before placing your film or slides.
a. transparency unit window
To place film for scanning, see Placing Film in the Holder.
To place slides for scanning, see Placing Slides in the Holder.

Placing Film in the Holder

Placing 35 mm Film Strips

Remove the film strip cover(s) on the film holder.
Slide up to four film strips all the way into the film holder with the shiny base side facing down. Your images and any wording on the film strips should appear backwards on the side that faces up, as shown by the illustration on the film holder.
Note:
Hold the edge of the film gently or use gloves to touch the film; otherwise you may damage the film.
Make sure the white stickers on the back of the film holder and the areas around them are not scratched, dusty, or covered in any way. If the areas are obscured, the scanner may have trouble recognizing your film in Full Auto Mode.
Do not cover any of the tiny holes in the film holder or the scanner may have trouble recognizing which film holder you are using.
Place the cover(s) over the film and press them down until they click. Then press down on all the edges of the covers to secure them.
Place the film holder on the document table so that it is aligned with the upper right corner.
Make sure you removed the document mat. See Removing the Document Mat.
Close the scanner cover.
To scan your film, see Starting Epson Scan.
When you are finished scanning film, be sure to replace the document mat before scanning documents or photos. See Replacing the Document Mat.

Placing Medium Format Film

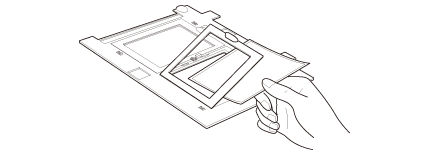

Open the cover on the medium format film holder.
Slide up to two medium format film images into the film holder with the shiny base side facing down. Your images and any wording on the film should appear backwards on the side that faces up, as shown by the illustration on the film holder. Make sure the entire image frame is positioned in the film holder opening.
Note:
Hold the edge of the film gently or use gloves to touch the film; otherwise you may damage the film.
Make sure the white stickers on the back of the film holder and the areas around them are not scratched, dusty, or covered in any way. If the areas are obscured, the scanner may have trouble recognizing your film in Full Auto Mode.
Do not cover any of the tiny holes in the film holder or the scanner may have trouble recognizing which film holder you are using.
Close the cover over the film and press it down until it clicks. Then press down on all the edges of the cover to secure it.
Place the film holder on the document table so that it is aligned with the upper right corner.
Make sure you removed the document mat. See Removing the Document Mat.
Close the scanner cover.
To scan your film, see Starting Epson Scan.
Note:
You cannot use Full Auto Mode to scan medium format film.
When you are finished scanning film, be sure to replace the document mat before scanning documents or photos. See Replacing the Document Mat.

Placing 4 × 5 inch Film

Open the covers on the 4 × 5 inch film holder.
Place the film into the film holder with the shiny base side facing down. Your images and any wording on the film should appear backwards on the side that faces up, as shown by the illustration on the film holder. Make sure the entire image frame is positioned in the film holder opening.
Note:
Hold the edge of the film gently or use gloves to touch the film; otherwise you may damage the film.
Make sure the white stickers on the back of the film holder and the areas around them are not scratched, dusty, or covered in any way. If the areas are obscured, the scanner may have trouble recognizing your film in Full Auto Mode.
Do not cover any of the tiny holes in the film holder or the scanner may have trouble recognizing which film holder you are using.
Close the cover over the film and press it down until it clicks. Then press down on all the edges of the cover to secure it.
Place the film holder on the document table so that it is aligned with the upper right corner.
Make sure you removed the document mat. See Removing the Document Mat.
Close the scanner cover.
To scan your film, see Starting Epson Scan.
Note:
You cannot use Full Auto Mode to scan 4 × 5 inch film.
When you are finished scanning film, be sure to replace the document mat before scanning documents or photos. See Replacing the Document Mat.

Placing Slides in the Holder

You can scan up to twelve 35 mm slides at a time using the slide holder.
Note:
You cannot scan negative slides.
Make sure the white stickers on the back on the film holder and the areas around them are not scratched, dusty, or covered in any way. If the areas are obscured, the scanner may have trouble recognizing your slides in Full Auto Mode.
Do not cover any of the tiny holes in the film holder or the scanner may have trouble recognizing which film holder you are using.
Place up to twelve slides in the 35 mm slide holder with the shiny base side facing down. Your image should appear backwards on the side that faces up, as shown by the illustration on the film holder. The top of your images should face the open end of the film holder as shown below.
Place the film holder on the document table so that it is aligned with the upper right corner.
Make sure you removed the document mat. See Removing the Document Mat.
Close the scanner cover.
To scan your slides, see Starting Epson Scan.
When you are finished scanning slides, be sure to replace the document mat before scanning documents or photos. See Replacing the Document Mat.

Placing Film in the Film Area Guide

You can scan film that cannot be placed in the film holders (up to 8 × 10 inch film) using the film area guide in Professional Mode. When scanning film using the film area guide, always select Film (with Film Area Guide) as the Document Type.
Note:
You cannot use DIGITAL ICE Technology when scanning film with the film area guide.
If you scan 8 × 10 inch film at 4800 dpi resolution and 24 bit color as the Image Type, do not save it in BMP, Tiff, or JPEG format.
When scanning using the film area guide, striped (newton) rings may appear in your scanned images.
Make sure the tab on the long edge of the film area guide is on the left side.
Fold the tab along the perforated lines as shown.
Place the film area guide on the document table with the tab facing the left side of the scanner.
Place the film in the film area guide (up to 8 × 10 inch film) with the shiny base side facing down. Your images and any wording on the film should appear backwards on the side that faces up. Make sure the entire image frame is positioned in the film area guide opening.
Note:
Leave the part of the film area guide circled below uncovered or colors in your scans will be affected.
Make sure you removed the document mat. See Removing the Document Mat.
Close the scanner cover.
To scan your film, see Starting Epson Scan.
Note:
You cannot use Full Auto Mode, Office Mode, or Home Mode when scanning film with the film area guide.
When you are finished scanning film, be sure to replace the document mat before scanning documents or photos. See Replacing the Document Mat.

Replacing the Document Mat

Replace the document mat by sliding it into the notches in the scanner cover. Make sure the white surface faces outwards.
