Replacing Ink Cartridges / Replacing Ink Cartridges

Checking the Ink Supply

For Windows
For Macintosh OS X

For Windows

You can check the amount of ink remaining in the ink cartridges using EPSON Status Monitor 3 or the progress meter. Refer to the appropriate section below for details.

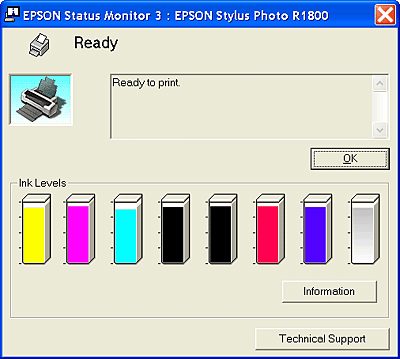

EPSON Status Monitor 3

Access EPSON Status Monitor 3 in one of the following ways.

A graphic displays the remaining amount of ink.

Note:
If any of the ink cartridges installed in the printer is broken, incompatible with the printer model, or improperly installed, EPSON Status Monitor 3 will not display an accurate calculation for the amount of ink remaining in any of the ink cartridges. Be sure to replace or reinstall any ink cartridge indicated by EPSON Status Monitor 3.

Progress meter

The progress meter dialog box appears automatically when you send a print job to the printer. You can check the remaining amount of ink from this dialog box.


[Top]

For Macintosh OS X

You can check the amount of ink remaining in the ink cartridges using EPSON StatusMonitor. Follow the steps below.

Double-click Macintosh HD (the default hard disk name), double-click the Applications folder, then double-click the EPSON Printer Utility icon. The Printer List window appears.

Select your printer, then click OK. The EPSON Printer Utility dialog box appears.

Click the EPSON StatusMonitor button. The EPSON StatusMonitor dialog box appears.

Note:
  • The graphic displays the amount of ink that remained when EPSON StatusMonitor was first opened. To update the ink-level information, click Update.
  • If any one of the ink cartridges that are installed in the printer is broken, incompatible to the printer model, or is installed improperly, the EPSON StatusMonitor will not display an accurate calculation for the amount of ink remaining in any of the ink cartridges. Be sure to replace or reinstall any ink cartridge when indicated by the EPSON StatusMonitor.


[Top]
