Using Special Media

Loading capacities for Epson special media

You can achieve good results with most types of plain bond paper. However, coated paper and glossy film provide superior printouts because they absorb less ink.

Epson provides special media that are formulated for the ink used in Epson ink jet printers. Epson recommends using media distributed by Epson to ensure high-quality results.

When loading special media distributed by Epson, read the instruction sheets packed with the media first and keep the following points in mind.

Caution:
  • Cleaning sheets packaged with Epson special media should not be used with this printer. The cleaning function performed by these sheets is not necessary with this type of printer, and the sheets could jam in the printer.
  • A paper jam occurs if two or more sheets of matte paper larger than A4/Letter size are loaded without the matte sheet support. For information on attaching the matte sheet support, see the following section.
    See Attaching the Matte Sheet Support.

Note:
  • Load the media into the sheet feeder printable side up. See the instruction sheets packed with the media to determine which side is the printable side. Some types of media have cut corners to help identify the correct loading direction.
  • Make sure you choose the appropriate feeder method and the appropriate driver setting for the media you are using.

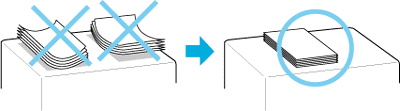

  • If the paper is curled, flatten it or curl it slightly in the opposite direction before loading. Printing on curled paper may cause ink to smear on your printout.

Loading capacities for Epson special media

Refer to the chart below to find the loading capacities for Epson special media.

Media Type

Loading Capacity

Bright White Ink Jet Paper

Up to 80 sheets

Presentation Paper Matte
Photo Quality Ink Jet Paper

Up to 50 sheets for Super B and A3

Up to 100 sheets for A4, Letter

Premium Presentation Paper Matte
Matte Paper - Heavyweight

Super B, A3: Up to 10 sheets when the matte sheet support is attached**

Super B, A3: One sheet at a time when the matte sheet support is not attached

A4, Letter: Up to 20 sheets

Ultra Premium Presentation Paper Matte
Enhanced Matte Paper

Super B, A3: Up to 10 sheets when the matte sheet support is attached**

Super B, A3: One sheet at a time when the matte sheet support is not attached

A4, Letter: Up to 20 sheets

Premium Presentation Paper Matte Double-sided
Double-sided Matte Paper

One sheet at a time

Premium Photo Paper Glossy
Premium Glossy Photo Paper

Super B, A3: Up to 10 sheets

A4, Letter, 10 x 15 cm (4 x  6 in): Up to 20 sheets

Ultra Premium Photo Paper Luster
Premium Luster Photo Paper

Super B, A3: Up to 10 sheets

Premium Photo Paper Semi-gloss
Premium Semi-gloss Photo Paper

Super B, A3: Up to 10 sheets

A4, Letter: Up to 20 sheets

Watercolor Paper-Radiant White*

One sheet at a time

UltraSmooth Fine Art Paper*

One sheet at a time

Velvet Fine Art Paper*

One sheet at a time

Proofing Paper Semimatte

One sheet at a time

Photo Quality Self Adhesive Sheet

One sheet at a time

*  This paper type is rear manual feed slot paper.
For instructions on how to load paper into the rear manual feed slot, see Loading Single Sheets of Paper into the Rear Manual Feed Slot.
**  When loading two or more sheets of matte paper, you must attach the matte sheet support. For instructions on how to attach the matte sheet support, see Attaching the Matte Sheet Support.
