Various Printing Options

Pages Per Sheet Printing

Driver settings for Windows
Driver settings for Mac OS X

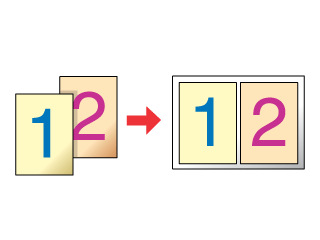

Pages Per Sheet printing allows you to print two or four pages on single sheets of paper.

Note:
This feature is not available when selecting the Borderless check box on the Main menu (Windows).

Driver settings for Windows

Access the printer driver.
Accessing the Printer Software for Windows

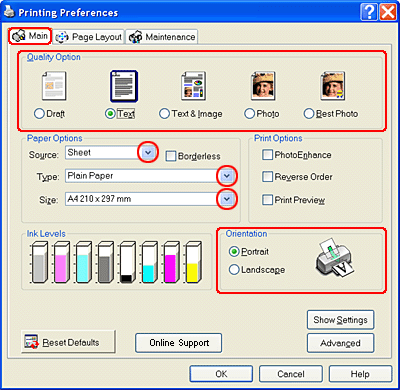

Click the Main tab, then make the Quality Option setting. See the following section for details on the Quality Option settings.
See Quality Option

Select Sheet as the Source setting.

Make the appropriate Type setting.
Media Type Settings

Make the appropriate Size setting.

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Click the Page Layout tab, select Multi-page, then select Pages Per Sheet.

Make the following settings for Pages Per Sheet printing.

2, 4

Prints two or four pages of your document on a single piece of paper.

Print Page Borders

Prints frames around the pages printed on each sheet.

Page Order

Allows you to specify the order in which the pages will be printed on the sheet of paper. Some settings may be unavailable, depending on the Orientation setting on the Main menu.

Click OK to close the printer driver settings dialog box.

After finishing all of the steps above, start printing.


[Top]

Driver settings for Mac OS X

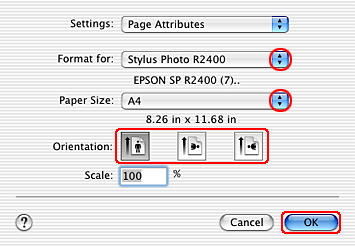

Access the Page Setup dialog box.
Accessing the Printer Software for Mac OS X

Select Stylus Photo R2400 as the Format for setting.

Make the appropriate Paper Size and Orientation settings.

Click OK to close the Page Setup dialog box.

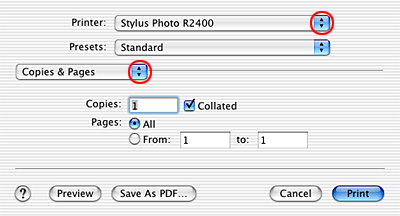

Open the Print dialog box.
Accessing the Printer Software for Mac OS X

Select Stylus Photo R2400 as the Printer setting, then make the Copies & Pages setting.

Note:
The Copies & Pages settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

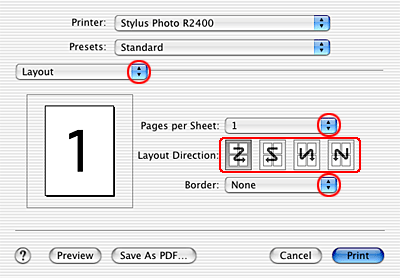

Select Layout from the pop-up menu.

Make the following settings.

Pages per Sheet

Prints multiple pages of your document on a single piece of paper. You can choose from 1, 2, 4, 6, 9, or 16.

Layout Direction

Allows you to specify the order in which the pages will be printed on the sheet of paper.

Border

Prints a border around the pages printed on each sheet. You can choose from None, Single hairline, Single thin line, Double hairline, or Double thin line.

Note:
The Layout settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

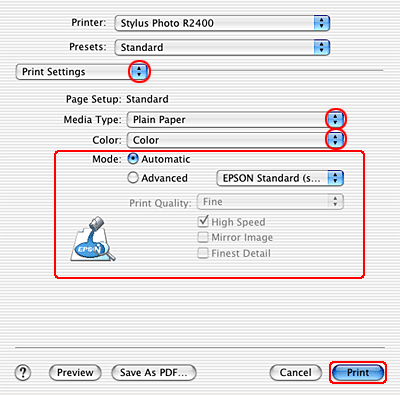

Select Print Settings from the pop-up menu.

Make the appropriate Media Type, Color, and Mode settings.
See Print Settings
Media Type Settings

Click Print to start printing.
