Various Printing Options

Watermark Printing

Printing the watermark for Windows
Creating your own watermark for Windows

Watermark printing allows you to print a text-based or an image-based watermark on your document.

Note:
  • This feature is not available with Mac OS X.
  • This feature is not available when selecting the Borderless check box on the Main menu (Windows) or in the Page Setup dialog box (Macintosh).

Printing the watermark for Windows

Access the printer driver software.
Accessing the Printer Software for Windows

Click the Main tab, then make the Quality Option setting. See the following section for details on the Quality Option settings.
See Quality Option

Select Sheet as the Source setting.

Make the appropriate Type setting.
Media Type Settings

Make the appropriate Size setting.

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

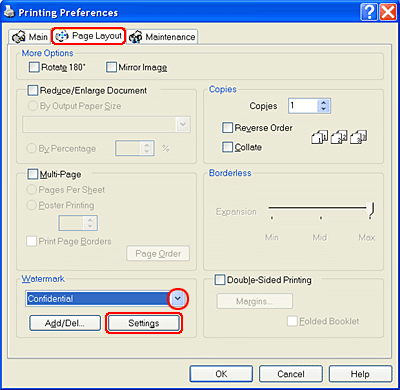

Click the Page Layout tab, choose the desired watermark from the Watermark list, then click Settings.

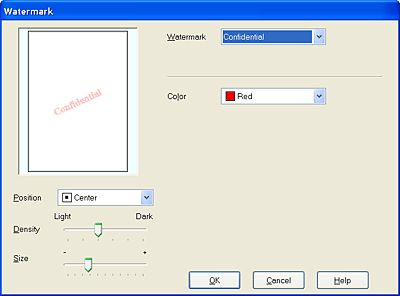

Specify the necessary settings for the watermark. You can change the position and size of the watermark by dragging the image within the preview window at the left of the dialog box.

Click OK to return to the Page Layout menu.

Click OK to close the printer driver settings dialog box.

Print the data from your application.


[Top]

Creating your own watermark for Windows

You can add your own text-based or image-based watermarks to the watermark list.

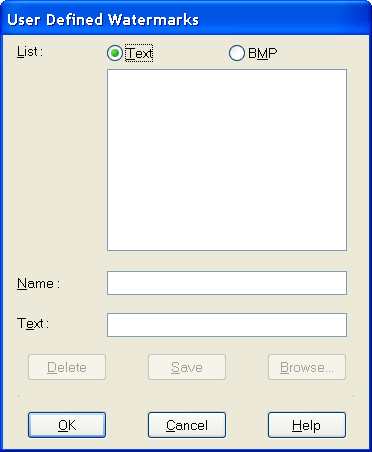

Click Add/Del under Watermark on the Page Layout menu. The following dialog box appears.

To use an image file as a watermark, select BMP. Click Browse to specify the bitmap file you want to use, then click OK. Type a name for your watermark in the Name text box, then click Save.

To create a text-based watermark, select Text. Type your text in the Text text box. The text that you enter will also be used as the watermark name. If you want to change the watermark name, type a new name in the Name text box, then click Save.

Click OK to return to the Page Layout menu.

Click Settings. The following dialog box appears.

Make sure that the appropriate watermark is selected in the Watermark list, then make Color, Position, Density, Size, Font, Font Style, and Angle settings. (For details, see online help.) Your settings are reflected in the display at the left of the dialog box.

When you finish making settings, click OK.


[Top]
