Printer Software Settings / For Mac OS X
Print dialog box settings
Note: |
|
Allows you to make the appropriate Printer and Presets settings that you want to use for printing.
Printer |
Select your printer. |
|
Presets |
Standard |
Prints with the current settings. |
Custom |
Prints with the custom saved settings.
Note: |
See Printable area
Allows you to make the appropriate Copies, Collated, Pages settings that you want to use for printing.
Note: |
|
Allows you to make the appropriate Pages Per Sheet, Layout Direction, and Border settings that you want to use for printing.
Note: |
|
Clear the Save as file check box when you want to print.
Note: |
|
Determines what other settings are available in the Print dialog box, so you should always make this setting first. Select the Media Type setting that matched the paper that is loaded in the printer. To find what media type you are using, find your media in the Media Type Setting list.
Media Type Settings |
Note: |
|
Color |
Prints in color. |
Black |
Prints in grayscale. |
Provides the quickest and easiest way to start printing. The printer software takes care of all detailed settings based on the current Media Type and Color settings.
Note: |
|
Selecting Advanced as the Mode setting gives you complete control over your printing environment. Use these settings to experiment with new printing ideas or to fine-tune a range of print settings to meet your individual needs.
Select the printing quality that you want to use for printing.
Gives you slightly more detail, but print times will be longer. This setting is available when Photo RPM is selected as the Print Quality setting.
Activates bidirectional printing so your printer prints both left-to-right and right-to-left. High Speed mode speeds up printing, but decreases print quality.
Prints an image as it would appear in a mirror. Text and graphics appear reversed.
Note: |
|

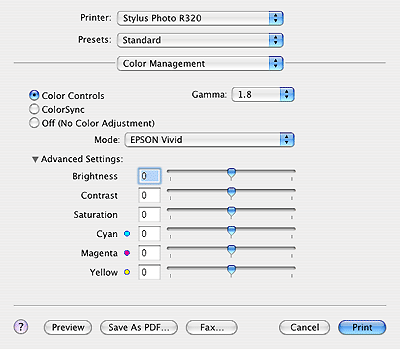

Selecting Color Management from the pop-up menu gives you control over the color matching and adjustment methods provided with the printer driver. Use these settings to experiment with new printing ideas or to fine-tune a range of print settings to meet your individual needs.
Select this setting to use the color matching and adjustment methods provided with the printer driver.
To control image contrast by modifying the midtones and mid-level grays.
Epson Standard |
Provides output that closely matches the original data. |
Charts and Graphs |
Intensifies the colors and lightens the midtones and highlights of an image. Use this setting for presentation graphics, such as charts and graphs. |
Epson Vivid |
Based on your data, enhances color balance for optimum print results. This setting is recommended for most print jobs. |
Click the arrow beside Advanced Settings. The color enhancement slide bars appear. The slide bars adjust the indicated options in a range of -25% to +25%. Drag the slide bar to the right or left with your mouse to adjust the settings. You can also type a value from -25% to +25% in the boxes next to the slide bars.
Automatically adjusts the printout colors to match the colors on your monitor.
Prints without any color adjustment.
Adjusts the size of the gap between the platen and the print head. Select this check box if your printouts are rubbed while printing.
Displays the list of current setting items.
Note: |
|
Allows you to see how your document will look before actually printing it.
Note: |
|
Previous |
Next |
