Product Information

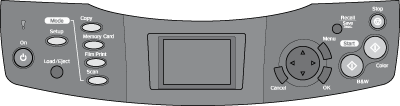

Control Panel Functions

LCD Panel
Buttons
Lights

LCD Panel

Displays a preview of the selected images, items or settings which can be changed with the buttons and error messages. For details about error messages, see Error messages.


[Top]

Buttons

Buttons

Function

On

Turns the Stylus Photo RX600 on and off.

Setup

Enters the Setup Mode.

Load/Eject

Loads or ejects a paper.

Copy

Enters the Copy Mode.

Memory Card

Enters the Memory Card Mode.

Film Print

Enters the Film Print Mode.

Scan

Enters the Scan Mode.

Cancel

Cancels the operation and returns to the previous menu.

OK

Enters the settings you have selected.

Menu

Displays menu items.

Recall/Save 3 sec.

Saves current settings when you press and hold this button for 3 seconds in the Copy mode. By pressing and releasing this button in less than 3 seconds, you can recall the saved settings.

B&W

Copies or prints in grayscale.

Color

Copies, prints, or scans in color.

Stop

Stops copying, printing, or scanning. A sheet being copied or printed is ejected.

4-Way Scroll

Selects the menu items.


[Top]

Lights

Light

Pattern

Status

! Error

On

An error has occured. (For details, see Error messages)

Mode
(Copy,Memory Card, Film Print, Scan)

On

Lights up the button for the current mode.


[Top]
