Scanning / Using EPSON Smart Panel

Applications in the EPSON Smart Panel Window

Scan and Save
Copy Center
Copy to Fax
View and Create
Scan to Application
Scan to E-mail
EPSON Photo Site

The EPSON Smart Panel window contains various applications. See the following section about the applications available.

By clicking an applications icon, you can use this product to scan and then send data directly to the application.

In addition, you can assign any of the available applications to the buttons on this product. See Assigning an application in the EPSON Smart Panel window for details. This makes scanning and then sending data to the assigned application even simpler. All you need to do is press the buttons on this product. For details about each application in the EPSON Smart Panel, click the question mark button on the lower right-hand screen to view its online help.

Scan and Save

Use this application to scan, convert, and then save an image to a specific folder. You can also convert an image using the PRINT Image Matching standard and add various color effects to the scanned image. When you launch this application, the following screen appears. Make necessary setting and then click Scan and Save. The image is scanned from EPSON Scan.

Note:
For information on the PRINT Image Matching technology, see PRINT Image Matching.


[Top]

Copy Center

Use this application to turn this product into a digital copy machine, yet its functions are far more powerful and flexible than the conventional copy machines. Using this application, you can scan and then print images as photos. You can copy in various sizes, or place several photos on the same page. Before you print an image, you can see the effects of image adjustments using the Preview window. When you launch this application, the following screen appears.

Note:
For Windows or Mac OS X, you can select paper easily when EPSON EasyPrintModule is installed.


[Top]

Copy to Fax

Note:
This application is available when a fax application is installed to your computer.

Use this application to send the image scanned from a document on the document table and send it by fax using a fax application. You can send documents just like using a fax machine. When you click Copy to Fax, the Copy Utility screen appears. Images scanned using the Copy Utility are sent to the fax application.


[Top]

View and Create

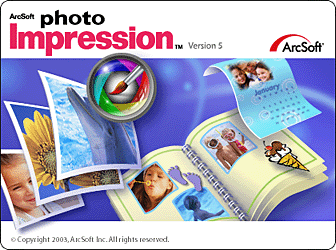

Use this application to scan photos using ArcSoft PhotoImpression. When you launch this application, the following screen appears and ArcSoft PhotoImpression starts automatically.

Note:
If ArcSoft PhotoImpression is not installed, the View and Create icon appear dimmed and is not available.


[Top]

Scan to Application

Use this application to scan and then send images to a desired application for further editing. When you launch this application, the following screen appears and the image is scanned from EPSON Scan.


[Top]

Scan to E-mail

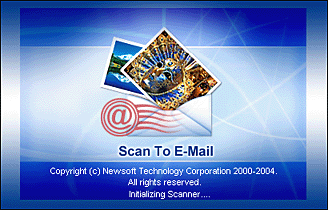

Use this application to scan an image and send an e-mail message with your scanned image attached. When you launch this application, the following screen appears and the image is scanned from EPSON Scan.


[Top]

EPSON Photo Site

Use this application to scan an image using the PRINT Image Matching technology, and then upload it to the EPSON photo-sharing site. When you launch this application, the image is scanned from EPSON Scan and displayed in the Verify Assistant dialog box. Click Next and the following dialog box appears. Click Upload to upload the image.


[Top]
