Printing / Various Printing Options

Borderless Printing

Compatible media
Preparing the print data
Printing from EPSON PhotoQuicker
Printing from the printer driver

This product allows you to print without margins on all four sides of the paper. Follow the steps described below for Borderless printing.

Note:
This feature is not available for all media and driver settings.

Compatible media

You can use the following media with this feature:

Matte Paper - Heavyweight

A4, Letter

Premium Glossy Photo Paper

A4, Letter, 5 x 7", 10 x 15 cm/4 x 6", 8 x 10"

Photo Paper

A4

Premium Semigloss Photo Paper

A4, Letter, 10 x 15 cm/4 x 6"

Glossy Photo Paper

Letter, 10 x 15 cm/4 x 6"

Note:
  • Printing with this feature takes longer than with normal printing.
  • Print quality may decline in the top and bottom areas of the printout, or the area may be smeared when printing on media other than those listed above. Print a single sheet to check the quality before printing large jobs.


[Top]

Preparing the print data

Because this option enlarges the image to a size slightly larger than the paper size, the portion of the image that extends beyond the edges of the paper will not be printed.

When creating print data in an application, you need to adjust the data to the size of the paper. If your application has margin settings, make sure they are set to zero before printing.


[Top]

Printing from EPSON PhotoQuicker

Using EPSON PhotoQuicker included on the CD-ROM is the easiest and quickest way to create borderless photos with this product. EPSON PhotoQuicker also includes a number of features that help you create outstanding photos.

For Windows

Access EPSON PhotoQuicker.
For Windows XP
Click the Start button, point to All Programs, point to EPSON PhotoQuicker, then choose EPSON PhotoQuicker3.x.
For Windows Me, 98, and 2000
Click the Start button, point to Programs, point to EPSON PhotoQuicker, then choose EPSON PhotoQuicker3.x.

Print images from EPSON PhotoQuicker. To learn how to print your photos, click the Help button to view instructions in the PhotoQuicker User's Guide.

For Mac OS 9

Double-click the EPSON PhotoQuicker3.x shortcut icon on the desktop.

Print images from EPSON PhotoQuicker. To learn how to print your photos, click the Help button to view instructions in the PhotoQuicker User's Guide.

For Mac OS X

Double-click the EPSON PhotoQuicker3.x for X shortcut icon on the desktop.

Print images from EPSON PhotoQuicker. To learn how to print your photos, click the Help button to view instructions in the PhotoQuicker User's Guide.


[Top]

Printing from the printer driver

Driver settings for Windows

After you have loaded the media, change your printer driver settings for Borderless printing.

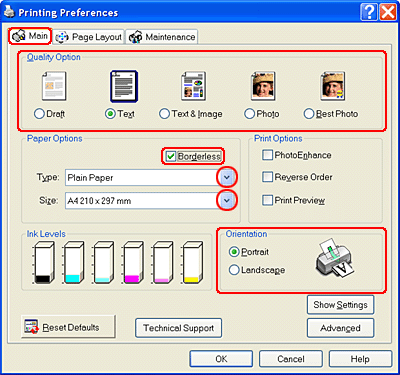

Access the printer driver.
For Windows in "Accessing the Printer Driver"

Click the Main tab, then make the Quality Option setting. For details, see online help.

Select the Borderless check box.

Make the appropriate Type setting.
Media Types

Make the appropriate Size setting.

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Click OK to close the printer driver settings dialog box.

After completing the steps above, print one test copy and examine the results before printing an entire job.

Note:
You can control the amount of the image that extends beyond the edges of the paper during borderless printing. When the Borderless check box is selected on the Main menu, the Borderless Expansion slider becomes available on the Page Layout menu.

Driver settings for Mac OS 9

After you have loaded the media, change your printer driver settings for Borderless printing.

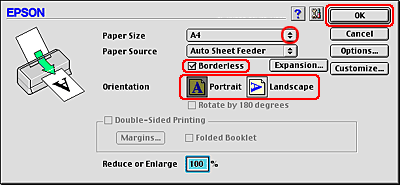

Access the Page Setup dialog box.
For Mac OS 9 in "Accessing the Printer Driver"

Make the appropriate Paper Size setting.

Select the Borderless check box.

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Click OK to save the settings and close the Page Setup dialog box.

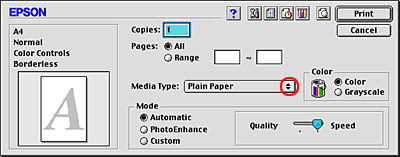

Access the Print dialog box.
For Mac OS 9 in "Accessing the Printer Driver"

Make the appropriate Media Type setting.
Media Types

After completing the steps above, print one test copy and examine the results before printing an entire job.

You can control the amount of the image that extends beyond the edges of the paper during borderless printing. When the Borderless check box is selected on the Page Setup dialog box, the Borderless Expansion slider becomes available.

Driver settings for Mac OS X

After you have loaded the media, change your printer driver settings for Borderless printing.

Access the Page Setup dialog box.
For Mac OS X in "Accessing the Printer Driver"

Select Stylus Photo RX630 as the Format for setting.

Make the appropriate Paper Size settings with the borderless attribute.

Make the appropriate Orientation setting.

Click OK to close the Page Setup dialog box.

Access the Print dialog box.
For Mac OS X in "Accessing the Printer Driver"

Select Stylus Photo RX630 as the Printer setting, then make the Copies & Pages settings.

Note:
The Copies & Pages settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

Select Print Settings from the pop-up menu.

Make the appropriate Media Type, Color, and Mode settings.
See online help for details of Print Settings.
Media Types

After completing the steps above, print one test copy and examine the results before printing an entire job.

You can control the amount of the image that extends beyond the edges of the paper during borderless printing. See online help for details.


[Top]
