Printing / Various Printing Options

Pages Per Sheet Printing

Driver settings for Windows
Driver settings for Mac OS 9
Driver settings for Mac OS X

Pages Per Sheet printing allows you to print two or four pages on single sheets of paper.

Note:
This feature is not available when selecting the Borderless check box on the Main menu (Windows) or in the Page Setup dialog box (Mac OS 9).

Driver settings for Windows

Access the printer driver.
For Windows in "Accessing the Printer Driver"

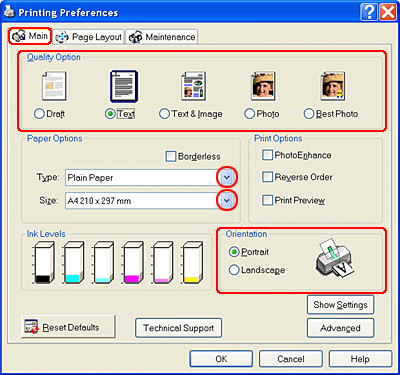

Click the Main tab, then make the Quality Option setting. For details, see online help.

Make the appropriate Type setting.
Media Types

Make the appropriate Size setting.

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Click the Page Layout tab and select the Multi Page check box. Then, select Pages Per Sheet.

Make the following settings for Pages Per Sheet printing.

2, 4

Prints two or four pages of your document on a single piece of paper.

Print Page Borders

Prints frames around the pages printed on each sheet.

Page Order

Allows you to specify the order in which the pages will be printed on the sheet of paper. Some settings may be unavailable, depending on the Orientation setting on the Main menu.

Click OK to close the printer driver settings dialog box.

After completing the steps above, print one test copy and examine the results before printing an entire job.


[Top]

Driver settings for Mac OS 9

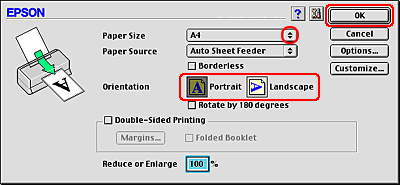

Access the Page Setup dialog box.
For Mac OS 9 in "Accessing the Printer Driver"

Make the appropriate Paper Size setting.

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Click OK to save the settings and close the Page Setup dialog box.

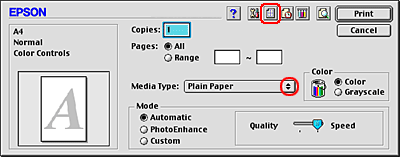

Access the Print dialog box.
For Mac OS 9 in "Accessing the Printer Driver"

Make the appropriate Media Type setting.
Media Types

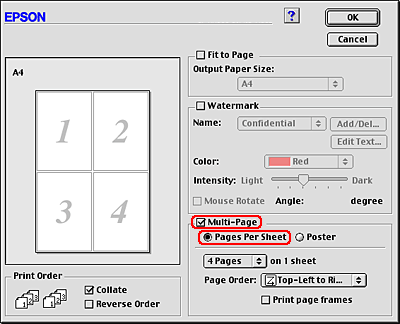

Click the Layout icon button.

Select the Multi-Page check box in the Layout dialog box, then select Pages Per Sheet.

Make the following settings for Pages Per Sheet printing.

2 Pages,
4 Pages

Prints two or four pages of your document on a single piece of paper.

Page Order

Allows you to specify the order in which the pages will be printed on the sheet of paper. Some settings may be unavailable, depending on the Orientation setting in the Page Setup dialog box.

Print page frames

Prints frames around the pages printed on each sheet.

Click OK to save the settings and close the Layout dialog box.

After completing the steps above, print one test copy and examine the results before printing an entire job.


[Top]

Driver settings for Mac OS X

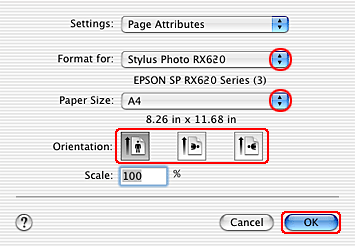

Access the Page Setup dialog box.
For Mac OS X in "Accessing the Printer Driver"

Select Stylus Photo RX630 as the Format for setting.

Make the appropriate Paper Size and Orientation settings.

Click OK to close the Page Setup dialog box.

Open the Print dialog box.
For Mac OS X in "Accessing the Printer Driver"

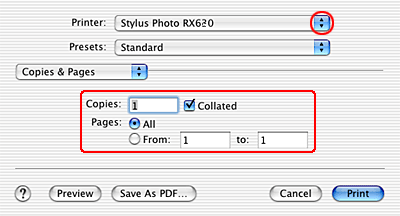

Select Stylus Photo RX630 as the Printer setting, then make the Copies & Pages setting.

Note:
The Copies & Pages settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

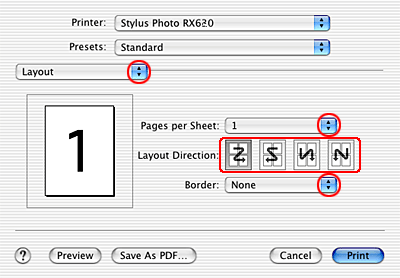

Select Layout from the pop-up menu.

Make the following settings.

Pages per Sheet

Prints multiple pages of your document on a single piece of paper. You can choose from 1, 2, 4, 6, 9, or 16.

Layout Direction

Allows you to specify the order in which the pages will be printed on the sheet of paper.

Border

Prints a border around the pages printed on each sheet. You can choose from None, Single hairline, Single thin line, Double hairline, or Double thin line.

Note:
The Layout settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

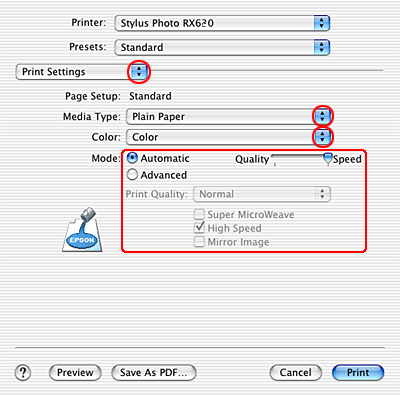

Select Print Settings from the pop-up menu.

Make the appropriate Media Type, Color, and Mode settings.
See online help for details of Print Settings.
Media Types

After completing the steps above, print one test copy and examine the results before printing an entire job.
