Specifications

Printing

Printing method
On-demand ink jet
Nozzle configuration
Black: 48 nozzles
Color: 45 nozzles (15 each: cyan, magenta, yellow)
Print direction
Bidirectional with logic seeking
Input buffer
12KB

Paper

Note: Poor quality paper may reduce print quality and cause paper jams or other problems. If you encounter problems, switch to a higher grade paper.

Do not load curled or folded paper.

Avoid extremes in temperature or humidity when printing. Optimum printing temperature ranges from 12 to 25°C (55 to 77°F), and optimum humidity ranges from 40 to 60% RH.

Store EPSON Self-Adhesive Sheets under the following conditions: 15 to 30°C (59 to 86°F), and 20 to 60% RH.

Plain Paper, All-Purpose Glossy Paper, Premium Bright White Paper, Photo Quality and High Quality Ink Jet Paper

Size
Letter (8,5 x 11 inches [216 × 280 mm])
Half letter (5,5 x 8,5 inches [140 × 216 mm])
Legal (8,5 x 14 inches [216 × 356 mm])
Executive (7,25 x 10,5 inches [190 × 225 mm])
A4 (8,3 x 11,7 inches [8,3 × 11,7 inches.])
A5 (5,8 x 8,27 inches [5,8 × 8,27 pul.])
User-defined:
Width: 90 to 241 mm (3,5 to 9,5 inches)
Length: 90 to 1,12 m (3,5 to 44 inches)
Paper types
Plain bond paper or special paper distributed by EPSON
Thickness (for plain bond paper)
0,08 a 0,11 mm (0,003 to 0,004 inch)
Weight (for plain bond paper)
64 to 90 g/m2 (17 to 24 lb)

Envelopes

Size
No. 10 (104 × 241 mm [4,13 × 9,5 inches])
DL (114 × 220 mm [4,33 × 8,7 inches])
C6 (114 ×162 mm [4,49 × 6,38 inches])
132 × 220 mm (5,2 × 8,7 inches)
Paper types
Plain bond paper, airmail
Thickness
0,015 a 0,508 mm (0,006 to 0,02 inch)
Weight
45 to 75 g/m2 (12 to 20 lb)

Glossy Photo Paper and Photo Paper

Size
Letter (8,5 × 11 inches [216 × 280 mm])
4 × 6 inches (101 × 152 mm)
Panoramic (8.3 x 23.4 inches)
A4 (210 × 297 mm [8,3 × 11,7 inches])
Paper types
Special paper distributed by EPSON

Ink Jet Cards

Size
A6 (104 × 147 mm [4,1 x 5,8 inches])
Paper types
Special paper distributed by EPSON

Photo Quality Glossy Paper, and Glossy Photo Greeting Cards

Size
Letter (8,5 × 11 inches [216 × 280 mm])
Paper types
Special paper distributed by EPSON

Self Adhesive Sheets

Size
A4 (210 × 297 mm [8,3 × 11,7 inches])
Paper types
Special paper distributed by EPSON

Photo Stickers

Size
A6 (A6 (104 × 147 mm [4,1 × 5,8 inches) with 16 frames
Paper types
Special paper distributed by EPSON

Matte Paper Heavyweight and Double-Sided Matte Paper

Size
Letter (8,5 × 11 inches [216 × 280 mm])
Paper types
Special paper distributed by EPSON

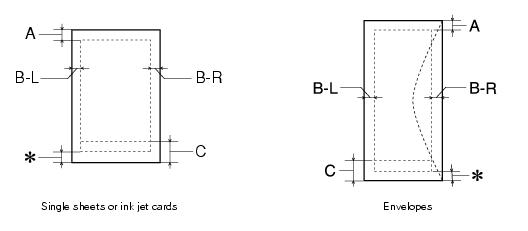

Printable Area

Minimum top margin (A)
3,0 mm (0,12 inch)
Minimum left margin (B-L)
3,0 mm (0,12 inch)
Minimum right margin (B-R)
3,0 mm (0,12 inch)
Minimum bottom margin (C)
12,5 mm (0,49 inch)

Note: You can extend the minimum bottom margin to 3 mm (0,12") using the Minimize Margins feature, however print quality may decline in the expanded area. Before printing large jobs using an extended margin setting, print a single sheet to confirm printout quality.

Ink Cartridges

Specification
Black cartridge (T038120)
Color cartridge (T039020)
Color(s)
Black
Cyan, Magenta, Yellow
Print capacity*
330 pages using ISO Letter Pattern 10561, 220 pages at 5% in calculation, except for the initial ink cartridge
180 pages, 5% each CMY (total 15%) in calculation, except for initial ink cartridge
Cartridge life
Within 6 months after opening package at 25°C (77°F)
Storage temperature
-20 to 40°C (-4 to 104°F)
1 month at 40°C (104°F)
Transit temperature
-30 to 60°C (-22 to 140°F)
1 month at 40°C (104°F); 120 hours at 60°C (140°F)
Freezing temperature**
-16°C (3,2°F)
-18°C (-0,4°F)
Dimensions
(W x D x H)
19,8 × 52,7 × 38,5 mm (0,78 × 2,08 × 1,52 inches)
42,9 × 52,7 × 38,5 mm
(1,69 × 2,08 × 1,52 inches)

* The figure given is based on continuous printing after ink replacement. The actual print capacity may vary.

** Ink thaws and is usable after approximately 3 hours at 25°C (77°F).

Caution: To ensure good results, use genuine EPSON cartridges and do not refill them. Other products may cause damage to your printer not covered by EPSON's warranties.

Don't use an ink cartridge if the date on the package has expired.

Mechanical

Paper feed method
Friction
Paper path
Sheet feeder, top entry
Sheet feeder capacity
100 sheets of 65,8 g/m2 (17 lb) paper
Dimensions
Storage
Width: 423 mm (16,7 inches)
Depth: 229 mm (9,0 inches)
Height: 172 mm (6,8 inches)
Printing
Width: 423 mm (16,7 inches)
Depth: 459 mm (18,1 inches)
Height: 277 mm (10,9 inches)
Weight
2,48 kg (5,47 lb) without the ink cartridges

Electrical

Input voltage range (Universal Power Supply)
90 to 264 V
Rated frequency range
50 to 60 Hz
Input frequency range
49,5 to 60,5 Hz
Rated current
0,4 to 0,2 A
Power consumption
Approximately 19 W (ISO10561 Letter Pattern)
Approximately 3,0 W Sleep mode
Approximately 2,7 W Power Off mode

Note: Check the label on the back of the printer for your printer's voltage.

Environmental

Temperature
Operation: 10 to 35°C (50 to 95°F)
Storage: -20 to 60°C (-4 to 140°F)
1 month at 40°C (104°F)
Transit: -20 to 60°C (-4 to 140°F)
120 hours at 60°C (140°F)
Humidity (without condensation)
Operation: 20 to 80% RH
Storage**: 5 to 85% RH

Note: Stored in shipping container.

Safety Approvals

Safety standards
UL 1950, CSA C22.2 No. 950
EMC
FCC part 15 subpart B class B
CSA C108.8 Class B
