Loading Paper

Single Sheets

Make sure your printer and computer are turned on.

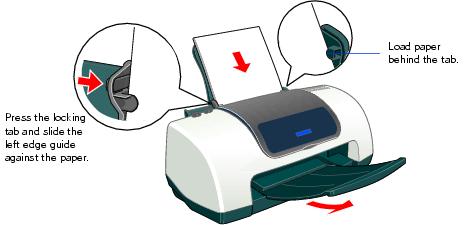

  1. Place your paper against the right edge of the sheet feeder, behind the tab.
  2. Press in the locking tab on the left edge guide and slide it against the paper.



  3. Pull out the output tray extension.

Follow these guidelines when loading paper:

Printing on Envelopes

You can load up to 10 envelopes at a time. Follow these steps to print on No. 10 size envelopes:

  1. Load the envelopes short edge first against the right edge of the sheet feeder, behind the tab. The printable side should be up, and the flap side should be down and on the left.
  2. Press in the locking tab on the left edge guide and slide it against the envelopes.



  3. In your application software, set a left margin of approximately 3 inches. Set a top margin of approximately 2 inches. Then type the address.
  4. Open your printer software and make the following settings:
    • For paper Type (Windows) or Media Type (Macintosh), select Plain Paper
    • For Orientation, select a Landscape option
    • For Paper Size, select the Envelope #10 option.
  5. Do one of the following to preview of your envelope layout:

    6. Windows: Click the Print Preview box, then click OK. Click Print in the Print window.

    Macintosh OS X: Click the Preview button on the Print Settings menu.

    Macintosh OS 9.x or earlier: Click the button on the printer settings menu. Then click the Preview button that appears.

  6. If you need to change the margins, cancel or close the preview window and adjust the margins in your application software. Then repeat step 4 and step 5.
  7. When your preview looks okay, print the envelope:

    8. Windows and Macintosh OS 8.5.1 or earlier: Click the Print button on the Print Preview window.

    Macintosh OS X: Select Print from your application software's File menu. Then click the Print button on the window that appears.

Special Papers

EPSON offers the following special papers for the EPSON Stylus C43:

Paper name
Size
Part number
EPSON Premium Bright White Paper
Letter (8,5 x 11 inches)
(216 × 279 mm)
S041586
EPSON Photo Quality Ink Jet Paper
Letter (8,5 x 11 inches)
(216 × 279 mm)
S041062-ML
A4 (8,3 x 11,7 inches)
(211 × 297 mm)
S041061
Legal (8,5 x 14 inches)
(216 × 355 mm)
S041067
EPSON High Quality Ink Jet Paper
Letter (8,5 x 11 inches)
(216 × 279 mm)
S041111-ML
A4 (8,3 x 11,7 inches)
(211 × 297 mm)
S041117
EPSON Photo Quality Ink Jet Cards
A6 (4,1 x 5,8 inches)
(104 × 147 mm)
S041054
EPSON Glossy Photo Paper
(EPSON Photo Paper)
4 x 6 inches
(101 × 152 mm)
S041134 S041671
Letter (8,5 x 11 inches)
(216 × 279 mm)
S041141-ML S041649
S041271 S041272
A4 (8,3 x 11,7 inches)
(211 × 297 mm)
S041140
Panoramic (8,3 x 23 inches) (211 × 584 mm)
S041145
EPSON All-Purpose Glossy Paper
Letter (8,5 x 11 inches)
(216 × 279 mm)
S041654-ML
EPSON Photo Stickers Kit (CD-ROM/paper)
EPSON Photo Stickers (refill)
A6 (4,1 x 5,8 inches)
(104 × 147 mm)
S041144-KIT
A6 (4,1 x 5,8 inches)
(104 × 147 mm)
S041144
EPSON Photo Quality Self Adhesive Sheets
A4 (8,3 x 11,7 inches)
(211 × 297 mm)
S041106
EPSON Photo Quality Glossy Paper
Letter (8,5 x 11 inches)
(216 × 279 mm)
S041124
A4 (8,3 x 11,7 inches)
(211 × 297 mm)
S041126
EPSON Matte Paper Heavyweight
Letter (8,5 x 11 inches)
(216 × 279 mm)
S041257-ML
EPSON Double-Sided Matte Paper
Letter (8,5 x 11 inches)
(216 × 279 mm)
S041568
EPSON Glossy Photo Greeting Card Kit
Letter (8,5 x 11 inches)
(216 × 279 mm)
S041606
