Product Information

Printer Parts and Control Panel Functions

Printer Parts
Control panel

Printer Parts

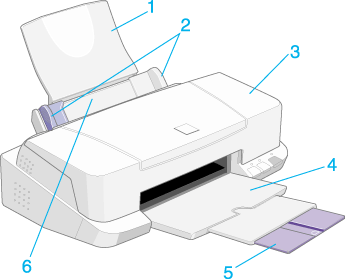

1. Paper support: Supports the loaded paper.

2. Edge guides: Help load the paper straight. Adjust the left edge guide to fit the width of your paper.

3. Printer cover: Open only when installing or replacing ink cartridges.

4. Output tray: Receives ejected paper.

5. Output tray extension: Supports the ejected paper.

6. Sheet feeder: Feeds a stack of paper automatically.

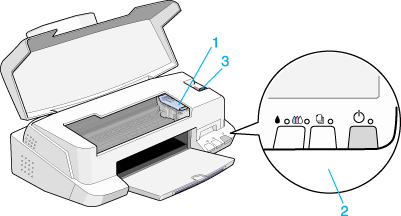

1. Ink cartridge clamps: Open only when installing or replacing ink cartridges.

2. Control panel

3. Adjust lever: Set to the "+" position if ink smears on your document when you use thick paper or envelopes.


[Top]

Control panel

The control panel consists of buttons and indicator lights, and gives you access to several features. Match the icons on the control panel with those in the charts below.

Buttons

Button

Function

Power

Turns the printer on and off.

Clears the printer's memory if pressed twice while the power is on.

Load/Eject

Loads or ejects paper if pressed and released within 2 seconds.

Resumes printing if pressed and released after a paper out error.

Cleaning

Moves the print head to the ink cartridge replacement position if pressed for 3 seconds while the black or color ink out light is flashing or on.

Returns the print head to its home position after ink cartridge replacement.

Performs print head cleaning if pressed for 3 seconds when the black or color ink out light is off.

Lights

Light

Printer Status

Power

On when the printer is on.

Flashes when receiving data, printing, replacing an ink cartridge, charging ink, or cleaning the print head.

Paper out

On when the printer is out of paper. Load paper in the sheet feeder, then press the load/eject button to resume printing.

Flashes when the paper is jammed. Take all of the paper out of the feeder, then reload the paper. If the light continues to flash, turn off the printer and gently pull all the paper out of the printer.

Black ink out

Flashes when the black ink cartridge is nearly empty.

On when the black ink cartridge is empty. Replace the black ink cartridge (S020189).

Color ink out

Flashes when the color ink cartridge is nearly empty.

On when the color ink cartridge is empty. Replace the color ink cartridge (S020191).


[Top]
