Specifications
Printing
|
Printing method
|
On-demand ink jet
|
|
Nozzle configuration
|
Black: 180 nozzles
Color: 177 nozzles (59 each cartridge: cyan, magenta, yellow)
|
|
Print direction
|
Bidirectional with logic seeking
|
Paper
Note: Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
Single sheets
|
Size
|
A4 (210 × 297 mm [8.3 × 11.7 in.])
A5 (148 × 210 mm [5.8 × 8.3 in.])
A6 (104 × 149 mm [4.1 × 5.9 in.])
Letter (8.5 × 11 in. [216 × 279 mm])
Legal (8.5 × 14 in. [216 × 356 mm])
Half-letter (5.5 × 8.5 in. [140 × 216 mm])
Executive (7.3 × 10.5 in. [185 × 267])
4 × 6 in. (102 × 152 mm)
5 × 7 in. (127 × 178 mm)
3.5 × 5 in. (89 × 127 mm)
8 × 10 in. (203 × 254 mm)
User Defined up to 216 mm × 1.12 m (8.5 × 44 inches)
|
|
Paper type
|
Plain bond paper or special paper distributed by Epson
|
|
Thickness
|
0.08 to 0.11 mm (0.003 to 0.004 in.)
|
|
Weight (for plain bond paper)
|
64 to 90 g/m² (17 to 24 lb)
|
Envelopes
|
Size
|
No. 10 (4.1 × 9.5 in.; 105 × 241 mm)
DL (4.3 × 8.7 in.; 109 × 221 mm)
C6 (4.5 × 6.4 in.; 114 × 163 mm)
|
|
Paper type
|
Plain bond paper or air mail paper
|
|
Weight
|
45 to 75 g/m² (12 to 20 lb)
|
Premium Bright White Paper
|
Size
|
Letter (8.5 × 11 in. [216 × 279 mm])
|
|
Paper type
|
Special paper distributed by Epson
|
Photo Paper and Glossy Photo Paper
|
Size
|
Letter (8.5 × 11 in. [216 × 279 mm])
A4 (210 × 297 mm [8.3 × 11.7 in.])
4 × 6 in. (102 × 152 mm)
|
|
Paper type
|
Special paper distributed by Epson
|
Matte Paper Heavyweight, Premium Semigloss Photo Paper
|
Size
|
Letter (8.5 × 11 in. [216 × 279 mm])
8 × 10 in. (203 × 254 mm)
|
|
Paper type
|
Special paper distributed by Epson
|
Note: Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 15 to 25 °C (59 to 77 °F)
Humidity: 40 to 60% RH

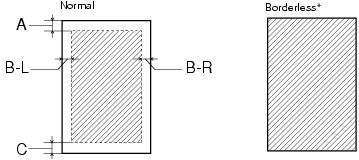

Printable Area
Single sheets or cards
Envelopes
|
A:
|
The minimum top margin is 3.0 mm (0.12").
|
|
B-L:
|
The minimum left margin is 3.0 mm (0.12").
|
|
B-R:
|
The minimum right margin is 3.0 mm (0.12").
|
|
C:
|
The minimum bottom margin is 3.0 mm (0.12").
|
|
D
|
The minimum bottom margin is 20 mm (0.78" for envelopes).
|
|
*
|
When printing with the borderless feature, print quality may decline in the expanded area. Before printing large jobs using the borderless setting, print a single sheet to confirm printout quality.
|
Note: Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
Mechanical
|
Paper feed method
|
Friction
|
|
Paper path
|
Automatic sheet feeder, top entry
|
|
Sheet feeder capacity
|
About 150 sheets at 90 g/m² (24 lb)
|
|
Dimensions
|
Storage
Width: 460 mm (18.1 inches)
Depth: 242 mm (9.5 inches)
Height: 191.2 mm (7.5 inches)
Printing
Width: 460 mm (18.1 inches)
Depth: 437 mm (17.2 inches)
Height: 309 mm (12.2 inches)
|
|
Weight
|
4.2 kg (9.2 lb), without ink cartridges
|
Ink Cartridges
Black Ink Cartridge (T063120)
|
Color
|
Black
|
|
Cartridge life
|
6 months at 25 °C (77 °F) after opening the package
|
|
Temperature
|
Storage:
-20 to 40 °C (-4 to 104 °F)
1 month at 40 °C (104 °F)
Transit:
-30 to 50 °C (-22 to 122 °F)
10 days at 50 °C (122 °F)
Freezing*: -16 °C (3.2 °F)
|
|
Dimensions
|
Width: 12.7 mm (0.5 inches)
Depth: 73.5 mm (2.9 inches)
Height: 55.3 mm (2.2 inches)
|
Color Ink Cartridges (Cyan: 063220, Magenta: T063320, and Yellow: T063420)
|
Color
|
Cyan, magenta, and yellow
|
|
Cartridge life
|
6 months at 25 °C (77 °F) after opening the package
|
|
Temperature
|
Storage:
-20 to 40 °C (-4 to 104 °F)
1 month at 40 °C (104 °F)
Transit:
-30 to 50 °C (-22 to 122 °F)
10 days at 50 °C (122 °F)
Freezing*: -16 °C (3.2 °F)
|
|
Dimensions
|
Width: 12.7 mm (0.5 inches)
Depth: 73.5 mm (2.9 inches)
Height: 55.3 mm (2.2 inches)
|
* Ink thaws and is usable after approximately 3 hours at 25 °C (77 °F).
Caution: To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson's warranty.
Do not use an ink cartridge if the date on the package has expired.
Electrical
|
|
UPS Model
|
|
Rated voltage
|
AC 100 - 240 V
|
|
Input voltage range
|
90 - 264 V
|
|
Rated frequency range
|
50 to 60 Hz
|
|
Input frequency range
|
49.5 to 60.5 Hz
|
|
Rated current
|
0.4 - 0.2 A
|
|
Power consumption
|
Approx. 19 W (ISO 10561 Letter pattern)
Approx. 4.5 W in sleep mode
Approx. 0.8 W in power-off mode
|
Environmental
|
Temperature
|
Printing: 10 to 35 °C (50 to 95 °F)
In storage: -20 to 60 °C (-4 to 140 °F)
1 month at 40 °C (104 °F)
Transit:* -20 to 60 °C (-4 to 140 °F)
120 hours at 60 °C (140 °F)
|
|
Humidity
|
Operation: 20 to 80% RH**
Storage*: 5 to 85% RH**
|
* Stored in shipping container
** Without condensation
Standards and Approvals
|
Safety
|
UL 1950
EN 60950 (VDE)
CSA C22.2 No. 950
|
|
EMI
|
FCC part 15 Subpart B class B
CSA C108.8 Class B
|
