Printer / Checking Printer Status and Managing Print Jobs for Windows

Using EPSON Status Monitor 3

Accessing EPSON Status Monitor 3

The Status Monitor utility displays detailed information on the printer status.

Note:

Before using the Status Monitor, be sure to read the README file. To open this file, Click Start, point to Programs, click Epson, and then click EPSON Stylus Scan 2500 Readme.

Accessing EPSON Status Monitor 3

There are two ways to access EPSON Status Monitor 3.

Double-click the printer-shaped shortcut icon on the taskbar at the bottom of your computer screen. To add a shortcut icon to the task bar, see Monitoring Preferences.

Open the printer software window, click the Utility tab, then click the EPSON Status Monitor 3 button.

Printer Status window

To get more detailed information, you can access the Printer Status window from the printer software window. Click the Utility tab, then click the EPSON Status Monitor 3 button.

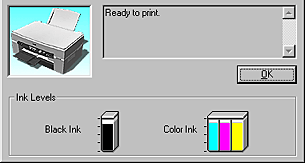

When you access the Printer Status window, the following window appears.

You can view the following information in the Printer Status window.

Current Status
Provides you with detailed printer status information, a graphic display, and status messages. If ink is low or out, the How to button appears in the lower message box. Clicking the button displays cartridge replacement instructions and moves the print head to the cartridge replacement position.

Ink levels
Provides a graphic display of the amount of ink remaining.
