Maintenance / Replacing Consumable Products

Toner Cartridge

Handling precautions
Changing a low toner cartridge
Removing and replacing an empty toner cartridge

Handling precautions

Always observe the following handling precautions when replacing the consumable products:

Warning:
  • Do not touch the toner. Keep the toner away from your eyes. If toner gets on your skin or clothes, wash it off with soap and water immediately.
  • Keep consumable products out of the reach of children.
  • Do not dispose of used consumable products in fire, as they may explode and cause injury. Dispose of them according to local regulations.
  • If toner is spilled, use a broom and dustpan or a damp cloth with soap and water to clean it up. Because the fine particles can cause a fire or explosion if they come into contact with a spark, do not use a vacuum cleaner.


[Top]

Changing a low toner cartridge

Make sure the CX11N is turned on, then press the  Setup button.

The Setup light is lit and the LCD screen displays Setup Mode for a few seconds, then changes to the Setup menu screen.

Use the  Up or  Down button to select Printer settings, then press the  Right button.

Use the  Up or  Down button to select Reset Menu, then press the  Right button.

Use the  Up or  Down button to select Change Toner C/M/Y/K for the color of the toner cartridge you want to change, then press the  Right button.

Continue with the steps in the next section to remove and replace the toner cartridge.


[Top]

Removing and replacing an empty toner cartridge

Make sure the CX11N is turned on.

Check the color of the toner cartridge to be replaced in the LCD panel, and then open cover A.

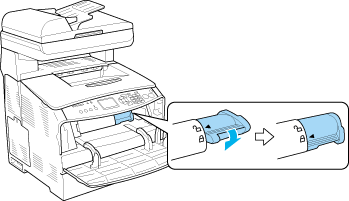

Push up the right lever to unlock the toner cartridge.

Remove the toner cartridge from the product.

Take the new toner cartridge out of its package and gently shake the toner cartridge as shown below.

Hold the tag and gently pull the toner seal upward and remove it.

Insert the cartridge all the way until it stops securely with the arrow mark on the top of the toner cartridge facing toward cover A.

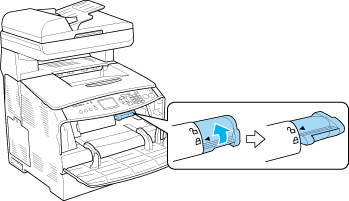

Push down the right lever to lock the toner cartridge.

Note:
The toner cartridge is installed securely when the right lever cannot be turned any further. Make sure that the toner cartridge is installed securely.

Close cover A.

Confirm the error message in the LCD panel. When another toner cartridge needs to be replaced, an error message is displayed. Repeat steps 2 to 9 to replace the cartridge.


[Top]
