Printing / Basic Printing Information

Using Special Media

Loading capacities for Epson special media
Storing Epson Photo Paper

You can achieve good results with most types of plain bond paper. However, coated paper and glossy film provide superior prints because they absorb less ink.

Epson provides media that are specially formulated for the ink used in Epson ink jet products. Epson recommends using media distributed by Epson to ensure high-quality results.

When loading special media distributed by Epson, read the instruction sheets packed with the media first and keep the following points in mind.

Caution:

Cleaning sheets packaged with Epson special media should not be used with the CX1500. The cleaning function performed by these sheets is not necessary with this type of product, and the sheets could jam inside the CX1500.

Note:

Load the media into the sheet feeder printable side up. See the instruction sheets packed with the media to determine which side is the printable side. Some types of media have cut corners to help identify the correct loading direction.

Make sure that the paper stack fits under the arrow mark on the side of the left edge guide.

Make sure that the paper is loaded under the tabs inside the edge guides.

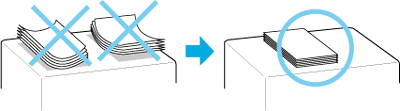

If the paper is curled, flatten it or curl it slightly in the opposite direction before loading. Printing on curled paper may cause ink to smear on your printout.

Loading capacities for Epson special media

Refer to the chart below to find the loading capacities for Epson special media.

Media type	Loading capacity
Photo Quality Ink Jet Paper	A4, Letter: Up to 30 sheets Legal: Up to 10 sheets
Photo Quality Ink Jet Cards	Up to 30 cards Always place the included support sheet* under the cards.
Photo Quality Self Adhesive Sheets	One sheet at a time
Photo Paper	4 x 6 inch Photo Paper: Up to 20 sheets Always place a support sheet* under the stack of Photo Paper.
Premium Glossy Photo Paper	One sheet at a time
Photo Stickers 16 and Photo Stickers 4	One sheet at a time
Iron-On Cool Peel Transfer Paper	One sheet at a time
Bright White Ink Jet paper	Up to 70 sheets
Double-Sided Matte Paper	One sheet at a time
Glossy Photo Paper	Up to 20 sheets
Matte Paper-Heavyweight	Up to 20 sheets Always place a support sheet* under the stack of Matte Paper-Heavyweight

[Top]

Storing Epson Photo Paper

Return unused paper to the original package as soon as you finish printing. Epson recommends storing your prints in a resealable plastic bag. Keep them away from high temperature, humidity, and direct sunlight.
