Specifications
Printing
|
Printing method
|
On-demand ink jet
|
|
Nozzle configuration
|
Monochrome (black) 144 nozzles
Color (cyan, magenta, yellow), 144 nozzles (48 nozzles per color × 3)
|
|
Print resolution
|
|
|
Print direction
|
Bidirectional with logic seeking
|
|
Control code
|
ESC/P raster
EPSON Remote
|
Paper
Note: Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, EPSON cannot guarantee the quality of any non-EPSON brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
Single sheets
|
Size
|
A4 (8.3 × 11.7 inches)
A5 (5.8 × 8.3 inches)
A6 (4.1 × 5.8 inches)
B5 (7.2 × 10.1 inches)
Letter (8.5 × 11 inches)
Half-letter (5.5 × 8.5 inches)
Legal (8.5 × 14 inches)
Executive (7.3 × 10.5 inches)
|
|
Paper type
|
Plain bond paper, special paper distributed by EPSON
|
|
Thickness (for plain bond paper)
|
0.003 to 0.004 inch (0.08 to 0.11 mm)
|
|
Weight (for plain bond paper)
|
17 lb (64 g/m²) to 24 lb (90 g/m²)
|
Envelopes
|
Size
|
132 × 220 (5.2 × 8.7 inches)
No. 10 (4.1 × 9.5 inches)
DL (4.3 × 8.7 inches)
C6 (4.5 × 6.4 inches)
|
|
Paper type
|
Plain bond paper, air mail
|
|
Thickness
|
0.006 to 0.02 inch (0.16 to 0.52 mm)
|
|
Weight
|
12 lb (45 g/m²) to 20 lb (75 g/m²)
|
Ink Jet Cards
|
Size
|
A6 (4.1 × 5.8 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Iron-On Transfer Paper
|
Size
|
Letter (8.5 × 11 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Transparencies and Glossy Paper
|
Size
|
Letter (8.5 × 11 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Self Adhesive Sheets
|
Size
|
A4 (8.3 × 11.7 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Photo Paper and Glossy Photo Paper
|
Size
|
Letter (8.5 × 11 inches)
4 × 6 inches (101.6 × 152.4 mm)
A4 (8.3 × 11.7 inches)
Panoramic (8.3 × 23 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Premium Glossy Photo Paper
|
Size
|
Letter (8.5 × 11 inches)
4 × 6 inches (101.6 × 152.4 mm)
5 × 7 inches (127 × 178 mm)
8 × 10 inches (203 × 254 mm)
|
|
Paper type
|
Special paper distributed by EPSON
|
Photo Stickers
|
Size
|
A6 (4.1 × 5.8 inches) with 16 frames
|
|
Paper type
|
Special paper distributed by EPSON
|
Matte Paper Heavyweight and Double-Sided Matte
|
Size
|
Letter (8.5 × 11 inches)
8 × 10 inches (203 × 254 mm)
|
|
Paper type
|
Special paper distributed by EPSON
|
Note: Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper under normal conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH
Store Photo Quality Self Adhesive Sheets under the following conditions:
Temperature: 59 to 86 °F (15 to 30 °C)
Humidity: 20 to 60% RH

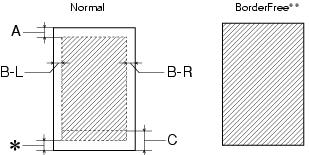

Printable Area
Single sheets or cards
Envelopes
|
A:
|
The minimum top margin is 0.12" (3.0 mm).
|
|
B-L:
|
The minimum left margin is 0.12" (3.0 mm).
|
|
B-R:
|
The minimum right margin is 0.12" (3.0 mm).
|
|
C:
|
The minimum bottom margin is 0.49" (12.5 mm).
|
|
*
|
You can extend the minimum bottom margin to 0.12" (3 mm), however print quality may decline in the expanded area. Before printing large jobs using an extended margin setting, print a single sheet to confirm printout quality.
|
|
**
|
When printing with the BorderFree or Borderless feature, the print quality may drop in the top and bottom areas of the printout, or the area may be smeared.
|
Note: Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
Mechanical
|
Paper feed method
|
Friction
|
|
Paper path
|
Sheet feeder, rear entry
|
|
Sheet feeder capacity
|
About 100 sheets at 17 lb (64 g/m²)
|
|
Dimensions
|
Width: 18.7 inches (475 mm)
Depth: 15.3 inches (389 mm)
Height: 9.25 inches (235 mm)
|
|
Weight
|
16.5 lb (7.5 kg) without the ink cartridges
|
Ink Cartridges
Black Ink Cartridge (T040120)
|
Color
|
Black
|
|
Print capacity*
|
600 pages/A4 (ISO/IEC 10561 Letter Pattern at 360 dpi)
|
|
Temperature
|
Storage:
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Transit:
-22 to 140 °F (-30 to 60 °C)
1 month at 104 °F (40 °C)
120 hours at 140 °F (60 °C)
Freezing:** 3.2 °F (-16 °C)
|
|
Dimensions
|
Width: 1.1 inches (28.1 mm)
Depth: 2.6 inches (66.85 mm)
Height: 1.5 inches (38.5 mm)
|
Color Ink Cartridge (T041020)
|
Color
|
Cyan, magenta, and yellow
|
|
Print capacity*
|
300 pages (A4, 360 dpi, 5% duty each color)
|
|
Temperature
|
Storage:
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Transit:
-22 to 140 °F (-30 to 60 °C)
1 month at 104 °F (40 °C)
120 hours at 140 °F (60 °C)
Freezing:** -0.4 °F (-18 °C)
|
|
Dimensions
|
Width: 1.7 inches (43.2 mm)
Depth: 2.6 inches (66.85 mm)
Height: 1.5 inches (38.5 mm)
|
* The figure given is based upon continuous printing after ink cartridge replacement. The actual print capacity may vary, depending on how often you use the print head cleaning function and how often you turn this product on.
** Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Caution: EPSON recommends the use of original EPSON ink cartridges only. Other products not manufactured by EPSON may cause damage to this product not covered by EPSON's warranties.
Do not use an ink cartridge if the date on the package has expired.
Do not refill the ink cartridges. This product calculates the amount of ink remaining using an IC chip on the ink cartridge. Even if the cartridge is refilled, the amount of ink remaining will not be recalculated by the IC chip and the amount of ink available for use will not change.
Scanning
|
Scanner type
|
Flatbed color image scanner
|
|
Photoelectric device
|
Color CCD line sensor
|
|
Effective pixels
|
5,100 × 7,020 pixels at 600 dpi, 100%
|
|
Document size
|
8.5 × 11.7" (216 × 297 mm)
Letter or A4 size (reading area selectable with software)
|
|
Scanning resolution
|
600 dpi (main)
1200 dpi (sub)
|
|
Output resolution
|
50 to 4800 dpi (adjustable in one-dpi increments), 7200 dpi, and 9600 dpi
|
|
Color separation
|
RGB color filters on CCD
|
|
Image data
|
16 bits per pixel per color internal
8 bits per pixel per color external
|
|
Gamma correction
|
User defined 1 level
|
|
Interface
|
USB
|
|
Light source
|
White cold cathode fluorescent lamp
|
|
Reliability
|
30,000 cycles of carriage movements (main unit MCBF)
|
|
Lamp
|
10,000-hour life
|
Electrical
|
Input voltage range
|
99 to 132V
|
|
Rated frequency range
|
50 to 60 Hz
|
|
Input frequency range
|
49.5 to 60.5 Hz
|
|
Rated current
|
0.5 A
|
|
Power consumption
|
Approx. 22 W (ISO10560 Letter pattern)
Approx. 6.5 W in sleep mode
Approx. 0.3 W in power-off mode
|
Note: Check the label on the back of this product for the voltage information.
Environmental
|
Temperature
|
Operation: 50 to 95 °F (10 to 35 °C)
Storage: -4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Transit:* -4 to 140 °F (-20 to 60 °C)
120 hours at 140 °F (60 °C)
|
|
Humidity
|
Operation: 20 to 80% RH
Storage:*, ** 5 to 85% RH
|
* Stored in shipping container
** Without condensation
Standards and Approvals
|
Safety
|
UL 1950
CSA C22.2 No.950
|
|
EMC
|
FCC part 15 Subpart B class B
CSA C108.8 Class B
|
Interface
This product's built-in USB interface is based on the standards specified in the Universal Serial Bus Specifications Revision 1.1 and the Universal Serial Bus Device Class Definition for Printing Devices Version 1.1. This interface has the following characteristics.
|
Standard
|
Based on Universal Serial Bus Specifications Revision 1.1, Universal Serial Bus Device Class Definition for Printing Devices Version 1.1
|
|
Bit rate
|
12 Mbps (full speed device)
|
|
Data encoding
|
NRZI
|
|
Adaptable connector
|
USB Series B
|
|
Recommended cable length
|
6.6 feet (2 meters)
|
