Product Information / Using the Memory Card

Loading Memory Cards

Loadable memory card
Available image files
Inserting a memory card into the slot
Ejecting memory cards

Loadable memory card

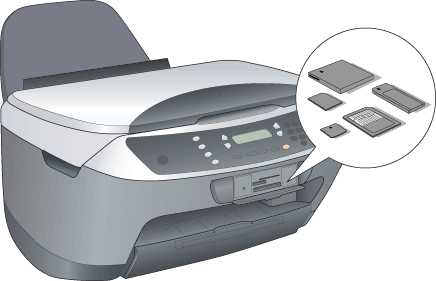

This product features three memory card slots.

The types of memory cards loadable for each slot are shown below.

Slot

Card

a

Memory Stick/ MagicGate Memory Stick/
Memory Stick Duo*/Memory Stick PRO/SD Card/ miniSD Card*/MultiMediaCard

b

SmartMedia/xD-Picture Card

c

CompactFlash/ Microdrive

*  An adapter is required.

Note:
The method to use a memory card varies depending on its card type. Be sure to refer to the documentation packaged with your memory card for details.


[Top]

Available image files

You can use image files that meet the following requirements.

Media format

DCF version 1.0 compliant*

File format

JPEG or TIF format image files**, DOS FAT (FAT 12 or 16, one partition) taken with a DCF version 1.0 compliant digital camera.

Image size

Vertical 120 to 4600 pixels, horizontal 120 to 4600 pixels

Number of files

Up to 999

*  DCF stands for the "Design rule for Camera File system" standard, which is set by the Japan Electronics and Information Technology Industries Association (JEITA).
**  Supports Exif Version 2.1/2.2.

Note:

You cannot print images with file name containing double-byte characters.


[Top]

Inserting a memory card into the slot

Press the On button to turn on this product.

Open the memory card slot cover.

Make sure the memory card light beside the memory card slot is off, and then insert a memory card as far as it can go into the appropriate slot.

Note:
You can load only one memory card at a time.

Close the memory card slot cover.

Caution:
  • Do not try to squeeze the memory card into the slot. Memory cards cannot be fully inserted into the card slots.
  • Incorrect loading of a memory card may damage this product, memory card, or both.
  • Keep the memory card slot cover closed while the memory card is loaded, which protects the memory card and the slot from dust and static; otherwise data on the memory card may be lost, or this product may be damaged.
  • Depending on the memory card loaded in this product, the static charge on the memory card may cause this product to malfunction.

Note:
If the memory card is inserted incorrectly, the memory card light does not go on.

If the images are stored on the memory card, the following message appears. Press the D or OK button.


[Top]

Ejecting memory cards

Make sure all the printing job is finished and the memory card light is not flashing.

Open the memory card slot cover.

Eject the memory card by pulling it out straight from the slot after printing is finished.

Caution:
  • Do not remove the memory card or turn off the product while the printing or while the memory card light is flashing. Data on the memory card may be lost.
  • If you are using this product with a computer which has Windows 2000 or XP installed, never turn this product off or disconnect the USB cable with a memory card inserted in this product; this may destroy data on the memory card. See Disconnecting This Product for details.


[Top]
