Control Panel Functions

LCD Panel
Buttons
Lights

LCD Panel

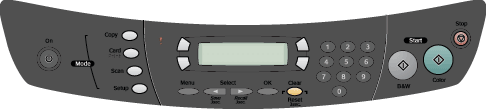

The LCD panel shows the current status of this product and helps you make various settings. The upper left area of the LCD panel shows the result of pressing the A button, the upper right for the B, the lower left for the C, and the lower right for the D button. When you turn on this product, it enters the mode selected the last time this product was turned off. The example below shows the state when this product is in the Copy Mode.

You can also check the error messages on the LCD panel. For details of the error messages, see Error messages.

Messages

Messages

Status

Turning on...

This product is turned on.

Warming up...

This product is warming up.

Turning off...

This product is turned off.

Resetting...

The setting's values are reset to their defaults.

Stored

All of the settings are stored in the memory.

Recalled

The settings stored in the memory are recalled.

Positioning the print head...

The ink cartridge (print head) is moving.

Printing.../Printing image IDXXX.../Printing DPOF files

This product is printing.

Scan and printing...

This product is scanning and printing.

Scanning...

This product is scanning.

Scan and saving image

This product is scanning and saving an image file to the memory card.

Canceling...

This product is canceling the operation.

Color copying...

This product is copying in color.

B&W copying...

This product is copying in grayscale.

Found images

Memory card including image files are inserted in this product.

Formatting...

This product is formatting the memory card.

Charging...

This product is charging the ink.

Head cleaning...

This product is cleaning the print head.

Intial charge...

This product is charging the ink for the first time.


[Top]

Buttons

Buttons

Function

On

Turns this product on and off.

Copy Mode

Enters the Copy Mode.

Card Print Mode

Enters the Card Print Mode.

Scan Mode

Enters the Scan Mode.

Setup Mode

Enters the Setup Mode.

Select/Save 3sec.

Moves to the previous option.
When this product is in the Copy Mode, the current setting is saved by pressing and holding this button for 3 seconds.

Select/Recall 3sec.

Moves to the next setting.
When this product is in the Copy Mode, the saved setting is recalled by pressing and holding this button for 3 seconds.

Clear/Reset 3sec.

Clears the setting you have entered.
Resets the number of copies to one.
Resets the values to their defaults when a menu item appears on the LCD panel.
When you press and hold this button for 3 seconds, all of the settings are reset to their defaults.

Menu

Displays menu items for detailed settings on the LCD panel.

OK

Enters the settings you have selected.

B&W

Copies or prints in grayscale.

Color

Copies or prints in color.
Starts scanning or the operation you have selected.

Stop

Stops copying or scanning. The sheet being copied is ejected.
Returns to the basic display when a menu item appears on the LCD panel.

A, B, C, D

Used for making various settings.
When a button lights up, this shows the button is valid.

Numeric buttons

Enter values (e.g. number of copies, enlargement ratio, etc.).


[Top]

Lights

Light

Pattern

Status

! Error

On

An error occurs. (For details, see Error messages)

Mode

(Copy,
Card Print, Scan, Setup)

On

Shows the mode this product is in.

A, B, C, D

On

Indicates the button is valid.


[Top]
