Printing / Various Printing Options

Pages Per Sheet Printing

Loading paper
Driver settings for Windows
Driver settings for Mac OS 8.6 to 9.x
Driver settings for Mac OS X

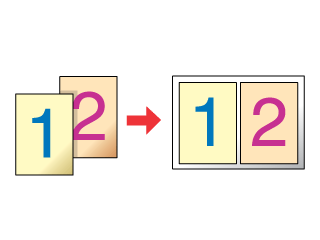

Pages Per Sheet printing allows you to print two or four pages on single sheets of paper.

Note:
This feature is not available when selecting the Borderless check box on the Main menu (Windows) or in the Page Setup dialog box (Mac OS 8.6 to 9.X).

Loading paper

Load paper into the sheet feeder.

Loading Single Sheets of Paper


[Top]

Driver settings for Windows

Access the printer driver.
Accessing the Printer Software for Windows

Click the Main tab, then make the Quality Option setting. For details, see online help.

Make the appropriate Type setting.
Media Type Settings

Make the appropriate Size setting.

Click the Page Layout tab and select the Multi Page check box. Then, select Pages Per Sheet.

Make the following settings for Pages Per Sheet printing.

2, 4

Prints two or four pages of your document on a single piece of paper.

Print Page Borders

Prints frames around the pages printed on each sheet.

Page Order

Allows you to specify the order in which the pages will be printed on the sheet of paper. Some settings may be unavailable, depending on the Orientation setting on the Main menu.

Click OK to close the printer driver settings dialog box.

After finishing all of the steps above, start printing.


[Top]

Driver settings for Mac OS 8.6 to 9.x

Access the Page Setup dialog box.
Accessing the Printer Software for Mac OS 8.6 to 9.x

Make the appropriate Paper Size setting.

Click OK to save the settings and close the Page Setup dialog box.

Access the Print dialog box.
Accessing the Printer Software for Mac OS 8.6 to 9.x

Make the appropriate Media Type setting.
Media Type Settings

Click the Layout icon button.

Select the Multi-Page check box in the Layout dialog box, then select Pages per Sheet.

Make the following settings for Pages Per Sheet printing.

2 Pages,
4 Pages

Prints two or four pages of your document on a single piece of paper.

Page Order

Allows you to specify the order in which the pages will be printed on the sheet of paper. Some settings may be unavailable, depending on the Orientation setting in the Page Setup dialog box.

Print page frames

Prints frames around the pages printed on each sheet.

Click OK to save the settings and close the Layout dialog box.

Click Print to start printing.


[Top]

Driver settings for Mac OS X

Access the Page Setup dialog box.
Accessing the Printer Software for Mac OS X

Select Stylus CX6400 as the Format for setting.

Make the appropriate Paper Size and Orientation settings.

Click OK to close the Page Setup dialog box.

Access the Print dialog box.
Accessing the Printer Software for Mac OS X

Select Stylus CX6400 as the Printer setting.

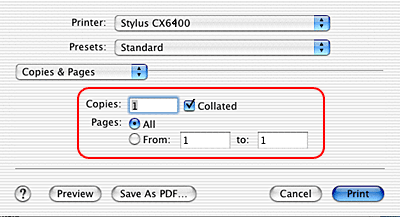

Make the Copies & Pages settings.

Note:
  • Always match the Format for setting in the Page Setup dialog box and the Printer setting in the Print dialog box. Otherwise the data may not be printed correctly.
  • The Copies & Pages settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

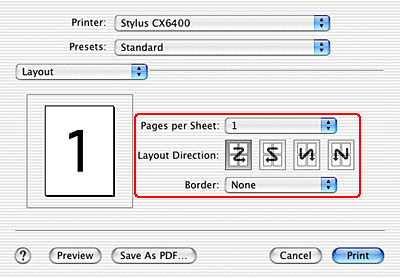

Select Layout from the pop-up menu.

Make the following settings.

Pages per Sheet

Prints multiple pages of your document on a single piece of paper. You can choose from 1, 2, 4, 6, 9, or 16.

Layout Direction

Allows you to specify the order in which the pages will be printed on the sheet of paper.

Border

Prints a border around the pages printed on each sheet. You can choose from None, Single hairline, Single thin line, Double hairline, or Double thin line.

Note:
The Layout settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

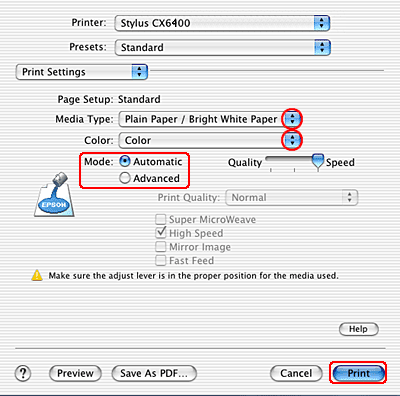

Select Print Settings from the pop-up menu.

Make the appropriate Media Type, Color, and Mode settings.
See Media Type Settings and online help for details.

Click Print to start printing.


[Top]
