Cleaning the Print Head

If your printouts are unexpectedly light or faint, or you notice light or dark bands across your printout, you may need to clean the print head. This unclogs the nozzles so they can deliver ink properly. Print head cleaning uses ink, so clean it only if quality declines.

You can clean the print head using the Head Cleaning utility on your computer. You can also run a nozzle check to see if the print head needs cleaning. (To use the control panel on your Epson Stylus CX7800 to perform these functions, see the Basics Guide.)

Note:
If the ink low icon is displayed, or if the LCD screen indicates an ink cartridge is empty, you cannot clean the print head. In this case, replace the appropriate ink cartridge first.

Caution:
If you don't use your Epson Stylus CX7800 often, it is a good idea to print a few pages at least once a month to maintain good print quality.

Checking the Print Head Nozzles

  1. Make sure the Epson Stylus CX7800 is turned on but not printing, and the ink low icon is not displayed in the upper-left corner of the LCD screen. (If the ink low icon is displayed, you need to replace a cartridge.)
  2. Windows: Right-click the  printer icon on your taskbar (in the lower right corner of your screen). Select Nozzle Check.

    3. Macintosh OS X: Open the Applications folder and select EPSON Printer Utility. Select your Epson Stylus CX7800 in the printer list, click OK, and select Nozzle Check.

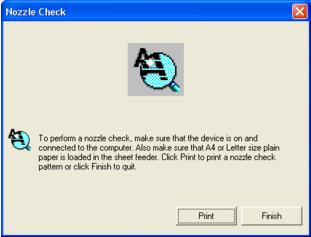

    You see a screen like the following:

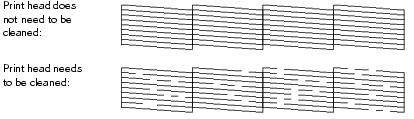

  3. Click Print. The nozzle check pattern prints:



  4. If there are no gaps or lines, click Finish.

    5. If there are gaps or lines, or the test patterns are faint, clean the print head as described in Running the Head Cleaning Utility.

Running the Head Cleaning Utility

  1. Make sure the Epson Stylus CX7800 is turned on but not printing, and the ink low icon is not displayed in the upper-left corner of the LCD screen. (If an ink cartridge is low or empty, you need to replace a cartridge.)
  2. Windows: Right-click the  printer icon on your taskbar (in the lower right corner of your screen). Select Head Cleaning.

    3. Macintosh OS X: Open the Applications folder and select EPSON Printer Utility. Select your Epson Stylus CX7800 in the printer list, click OK, and select Head Cleaning.

    You see a screen like the following:



  3. Click Start or Next.

    4. Cleaning takes several seconds. The Epson Stylus CX7800 runs a head cleaning cycle.

    Caution:
    Never turn off the Epson Stylus CX7800 while head cleaning is in progress. You may damage it.

  4. When the On light stops flashing, make sure paper is loaded in the Epson Stylus CX7800, then do the following:

    5. Windows: Click Print Nozzle Check Pattern. Then click Print.

    Macintosh: Click Confirmation, then click Next.

    The nozzle check pattern prints (see Examining the Nozzle Check Pattern for details).

  5. If there are no gaps or lines, click Finish.

    6. If there are still gaps or lines, or the test patterns are faint, click Clean to clean the print head again.

    If you don't see any improvement after cleaning four or five times, refer to Problems and Solutions. You can also turn the printer off and wait overnight. This lets any dried ink soften. Then try cleaning the print head again.

    Tip:
    If you do not use your Epson Stylus CX7800 often, it is a good idea to print a few pages at least once a month to maintain good print quality.

Examining the Nozzle Check Pattern

Examine the nozzle check pattern you printed. Each staggered line should be solid, with no gaps, as shown.
