Setting Up the LCD Screen Menu List

Each item on the LCD screen opens a pre-selected job when you select and press the Start button. The default jobs and the actions they perform are described in the table below.
Note for Mac OS X users:
Only the job number is displayed on the LCD screen. To confirm the job settings, check the Button Settings tab in the Epson Event Manager main window. See Adding and Assigning Scan Jobs (Mac OS X) for instructions.
Job name
Default action
Scan to PDF (Gray) (Windows)
Scans into Grayscale images. The scanner scans only one side of the documents and saves into PDF format.
Scan to PDF (B&W) (Windows)
Scans into Black and White images. The scanner scans only one side of the documents and saves into PDF format.
Scan to PDF (Color) (Windows)
Scans into Color images. The scanner scans only one side of the documents and saves into PDF format.
Scan to PDF (Auto) (Windows)
Automatically detects image type. The scanner scans both sides of the documents and saves into PDF format.
B&W PDF-Simplex (Mac OS X)
Scans into Black and White images. The scanner scans only one side of the documents and saves into PDF format.
Color PDF-Simplex (Mac OS X)
Scans into Color images. The scanner scans only one side of the documents and saves into PDF format.
B&W PDF-Duplex (Mac OS X)
Scans into Black and White images. The scanner scans both sides of the documents and saves into PDF format.
Color Jpeg to E-mail (Mac OS X)
Scans into Color images. After you scan, the Send File Via E-mail window appears.

Adding and Assigning Scan Jobs (Windows)

You can configure any of the LCD screen menu items to open a job in the Document Capture Pro to make scanning your projects even quicker.
Do one of the following to start Document Capture Pro:
Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
Windows (other versions): Click the start button icon or Start > Programs or All Programs > EPSON Software > Document Capture Pro.
You see a window like this:
Click the Manage Job icon from the toolbar at the top of the window. You see a window showing the current scan job list..
If you want to add a scan job, click Add, enter a name for the new job, select settings as necessary, and click OK. You can now use the new scan job when you scan with Document Capture Pro.
Note:
See the Help information in Document Capture Pro for details.
If you want to assign scan jobs to the selection list on the product control panel, click Event Settings.
Select the jobs that you want to assign to any of the pull-down menus, click OK, then click OK again.
Now you can scroll through the LCD screen menu list, select the job you assigned, and press the Start button to start the scan.

Adding and Assigning Scan Jobs (Mac OS X)

You can configure any of the LCD screen menu items to open a job in the Epson Event Manager to make scanning your projects even quicker.
Select Applications > Epson Software, and double-click the Event Manager icon.
You see the Button Settings tab in Epson Event Manager.
Select your scanner from Select Scanner.
Click the arrow next to a job description, then select a preset job or go to step 4 to create a new job. The preset jobs are listed below.
Scan and Save: Epson Scan starts. See Scanning Documents Using Epson Scan for instructions.
Scan and Copy: Copy Utility starts. See Using the Scanner as a Copier for instructions.
If you want to create a job, click Make Job Settings. Click New, enter the Job Description and make the necessary Scan Settings, and then click OK.
Note:
After you finish the job settings, go back to step 3 and select the job you created.
Click Close to close the Epson Event Manager window.
Now you can scroll through the LCD screen menu list, select the job you assigned, and press the Start button to start the scan.
Note:
If you need help using Epson Event Manager, click Help, then Epson Event Manager Help.

Assigning a Program With Windows 8, Windows 7, and Windows Vista

Do one of the following:
Windows 8.x: Navigate to the Apps screen and select Control Panel.
Windows (other versions): Click the start button icon and select Control Panel.
Click Hardware and Sound, then Devices and Printers (Windows 8 and Windows 7) or Scanners and Cameras (Windows Vista).
Right-click your scanner’s icon and select Scan Properties (Windows 8 and Windows 7) or Properties (Windows Vista).
Click Yes or Continue in the User Account Control window.

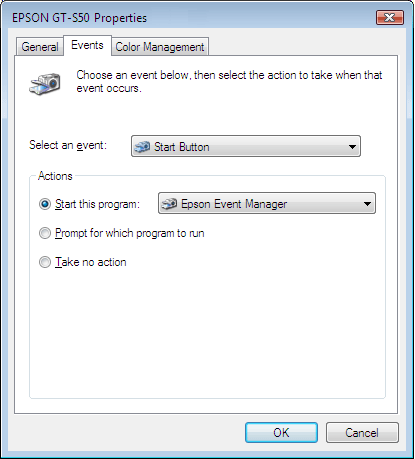

Click the Events tab.
In the Select an event list, make sure Start Button is selected.
In the Start this program list, choose the program you want to assign. Only compatible programs appear in the list.
Note:
If you want to be given a choice of programs whenever you press the Start button, click the Prompt for which program to run radio button instead. If you want to disable the button from opening a program, click the Take no action radio button instead.
Click OK.
Now whenever you press the Start button, the program you assigned opens.
Note:
To run a job from the LCD screen menu when the Start button is pressed, Epson Event Manager must be assigned in the Start this program list.

Assigning a Program With Windows XP

Click Start > Control Panel > Scanners and Cameras.
Right-click your scanner’s icon and select Properties.
Click the Events tab.
In the Select an event list, make sure Start Button is selected.
In the Start this program list, choose the program you want to assign. Only compatible programs appear in the list.
Note:
If you want to be given a choice of programs whenever you press the Start button, click the Prompt for which program to run radio button instead. If you want to disable the button from opening a program, click the Take no action radio button instead.
Click Apply, then click OK.
Now whenever you press the Start button, the program you assigned opens.
Note:
To run a job from the LCD screen menu when the Start button is pressed, Epson Event Manager must be assigned in the Start this program list.
