Scanning Basics

Adjusting the Highlight Setting

Highlights are the brightest areas of an image.

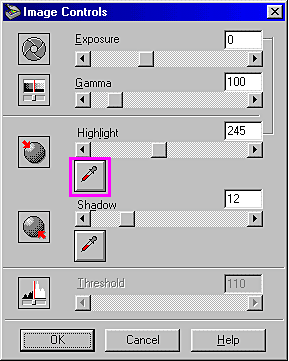

In the Image Controls dialog box, click the eyedropper button under Highlight.

The mouse pointer changes to an eyedropper, with movement restricted to within the Preview window.

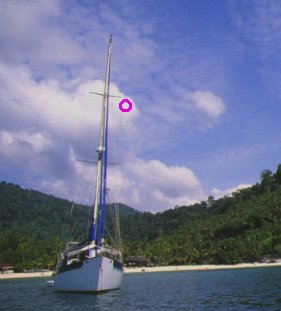

Move the eyedropper to the location you want to select as the highlight point and click it.

The brightness of the pixel at the point you click is set as the highlight level, and the other parts of the image are adjusted accordingly.

To change the highlight level (brightness) of the point you selected, move the Highlight slider left or right, or enter a value in the text box. You can enter a value between 61 and 490 for the highlight.

Note:

See Image Controls for further information on adjusting the highlight level.
