Using the Optional Automatic Document Feeder

Installing the Automatic Document Feeder

Follow the steps below to install the Automatic Document Feeder on your EPSON scanner.

Make sure your scanner is turned off.

Unplug the document cover cable from the back of the scanner.

Remove the document cover by opening it and pulling it straight up.
Removing the document cover

Remove the protective materials from the Automatic Document Feeder.

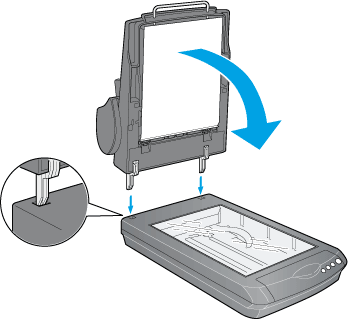

Insert the hinges on the Automatic Document Feeder into the holes at the back of the scanner and close the feeder.

Attach the Automatic Document Feeder's connector to the scanner's accessory interface connector.

Attach the paper support to the Automatic Document Feeder.
