Placing Photos and Documents on the Document Table
 Removing the document cover
Attaching the reflective document mat
Before scanning a document, remember to respect the rights of copyright owners. Do not scan published text or images without first checking the copyright status.
 |
Caution:
|
 | |
Do not place heavy objects on the glass of the document table. Also, do not press the glass of the document table with too much force.
|
|
 |
Open the document cover.
|
|  |
Note:
|
| | -
For a thick or large document, you can remove the document cover to make it easier to align the document. See "Removing the document cover".
|
|
| | -
If the reflective document mat is not attached, you need to attach it. See "Attaching the reflective document mat".
|
|
 |

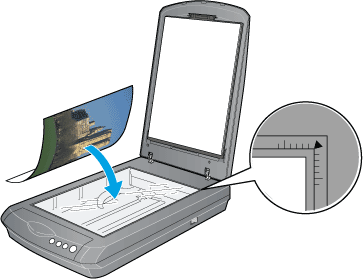

Place the document on the document table, with the side to be scanned facing down. Make sure that the document is carefully aligned with the alignment mark as shown below.
|
| |
Note:
|
| | -
The area with a width of maximum .08 inch (2.1 mm) from the horizontal guide and .06 inch (1.5 mm) from the vertical guide is not scanned.
|
|
1. Maximum unreadable area of .08 inch (2.1 mm)
2. Maximum unreadable area of .06 inch (1.5 mm)
| | -
In the Full Auto Mode or when previewing images using the Thumbnail method, if you scan multiple photos, position each photo at least an inch (20 mm) apart from adjacent photos.
|
|
 |
Close the document cover gently so that the document does not move.
|
|
Note:
|
| -
Always keep the document table clean.
|
|
| -
Do not leave photographs on the document table for an extended period of time as they may stick to the glass.
|
|
Removing the document cover
When you scan thick or large documents, you can remove the document cover.
|
Note:
|
| -
When you set the document without the document cover, make sure to press the document from above and make it flat.
|
|
| -
When you press the document, do not move the document and not to use too much force.
|
|
|
|
Make sure the scanner is turned off.
|
|
|
If the document cover's cable is attached, disconnect it.
|
|
|
Open the document cover.
|
 |
Pull the document cover straight up.
|
|
Note:
|
| |
When you are finished scanning, reattach the document cover in the reverse order that you removed it.
|
|
