Product Information

Scanner Parts

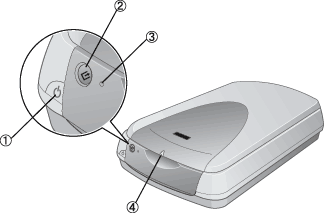

Lights and Buttons

1. Power button
2. Start button
3. indicator light
4. TPU light
5. integrated TPU (Transparency Unit)

1. document table
2. reflective document mat
3. carriage (in the home position)

Note:

Your scanner comes with an integrated TPU (Transparency Unit) for scanning slides and film. The TPU also functions as a document cover, and has a reflective document mat attached to it. Be sure the reflective document mat is attached when scanning reflective documents, such as text documents or photos.

1. IEEE 1394 (FireWire) interface connector
2. USB interface connector
3. option interface connector
4. transportation lock
5. AC inlet

Lights and Buttons

The scanner has two indicator lights and two buttons.

1. Power button
2. Start button
3. indicator light
4. TPU light

Lights

Light	Color	Indicator Status	Meaning
indicator	Green	On	Ready to scan images.
	Green	Flashing	Initializing or busy scanning.
	Red	Flashing	An error has occurred. See Error Indicator for more information.
	(None)	Off	The scanner is off.
TPU	Blue	On	The integrated TPU is on.
TPU	(None)	Off	The integrated TPU is off.

Buttons

Button	Function
Power	Turns the scanner on and off.
Start	Scans and sends the captured image to an assigned application in a single step. Before using this feature, make sure you have installed EPSON Scan and EPSON Smart Panel software. See Using the Start Button for more details.
