Product Information
Lights

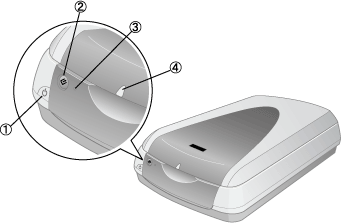

The scanner provides two buttons and two lights for scanner operations.
1.Power button
2.Start button
3. indicator light
4. document cover light
|
Light |
Color |
Indicator Status |
Meaning |
|
indicator |
Green |
|
Ready to scan images. |
|
|
Initializing or busy scanning. |
||
|
Red |
|
An error has occurred. See Error Indicator for more information. |
|
|
(None) |
|
The scanner is off. |
|
|
document cover light |
Blue |
|
Scanning transparent documents (such as films). |
|
(None) |
|
Scanning reflective documents (such as photos and documents). |
|
Button |
Function |
|
|
Powers on and off the scanner. |
|
|
Scans and sends the captured image to an assigned application in a single step. Before using this feature, make sure you have installed EPSON Scan. See Use the Start Button on the Scanner for more details. |
 Previous |
 Next |
| Version 1.00E, Copyright © 2003, SEIKO EPSON CORPORATION |
On
Flashing
Flashing
Off
