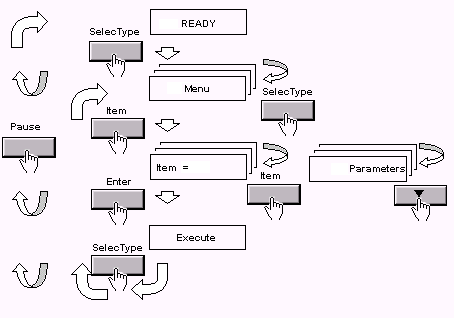

 SelecType mode chart
SelecType menu list
Press the Pause button any time to return to the READY status.
![[Top]](images/top.gif) [Top]
* Factory set value
|
Menu
|
Item
|
Parameters
|
|
PRINTER SETTING MENU
|
PLATEN GAP
|
AUTO*, WIDE
|
|
PAGE LINE
|
ON*, OFF
|
|
INTERFACE
|
AUTO*, PARALLEL, MAC, OPTION
|
|
PARA. I/F
|
COMPAT.*, ECP
|
|
CODE PAGE
|
PC437*, PC850
|
|
ROLL MARG
|
T/B 15 MM*, 3 MM, 15 MM
|
|
INIT. PANEL
|
EXEC.
|
|
TEST PRINT MENU
|
NOZZLE CHECK
|
PRINT
|
|
STATUS CHECK
|
PRINT
|
|
PRINTER STATUS
MENU
|
VERSION
|
XXXXXX
|
|
INK LEFT-K
|
E F to E F
|
|
INK LEFT-C
|
EF to E F
|
|
INK LEFT-M
|
EF to E F
|
|
INK LEFT-LC
|
EF to E F
|
|
INK LEFT-LM
|
EF to E F
|
|
INK LEFT-Y
|
EF to E F
|
|
CUTTER LIFE
|
EF to E F
|
|
TOTAL PRINTS
|
(nnnnnn)
|
|
WASTE INK
|
EF to E F
|
|
CR MOTOR
|
EF to E F
|
|
PF MOTOR
|
EF to E F
|
|
HEAD UNIT
|
EF to E F
|
|
CLEANER
|
EF to E F
|
|
PAPER CONFIG. MENU
|
PAPER NUMBER
|
STD*, 1 to 4
|
|
THICK. PAT.
|
PRINT
|
|
PAPER THICK. NO.
|
1 to 17
|
|
DRYING TIME
|
0 MIN* to 30 MIN
|
|
CUTTER REPLACE MENU
|
CUT. REPLACE
|
EXEC.
|
|
OPEN LOWER COVER
|
—
|
|
REPLACE CUTTER
|
—
|
|
CLOSE LOWER COVER
|
—
|
|
HEAD ALIGNMENT MENU
|
PAPER THICK.
|
STD*, 0.0 MM to 1.6 MM
(0.1 mm step)
|
|
ADJUST. PATT.
|
ALL*, #1 to #12
|
|
#1
|
1 to 7 (4*)
|
|
#2
|
1 to 7 (4*)
|
|
#3
|
1 to 7 (4*)
|
|
#4
|
1 to 7 (4*)
|
|
#5
|
1 to 7 (4*)
|
|
#6
|
1 to 7 (4*)
|
|
#7
|
1 to 7 (4*)
|
|
#8
|
1 to 7 (4*)
|
|
#9
|
1 to 7 (4*)
|
|
#10
|
1 to 7 (4*)
|
|
#11
|
1 to 7 (4*)
|
|
#12
|
1 to 7 (4*)
|
