Various Printing Options

Poster Printing

Driver settings in Windows
How to make a poster from your printouts

Poster printing allows you to print poster-size images by enlarging one page to cover several sheets of paper.

Note:
  • This feature is not available with Mac OS X.
  • This feature is not available when selecting the Borderless check box on the Main menu (Windows).

Driver settings in Windows

Access the printer driver.
Accessing the Printer Software for Windows

Click the Main tab, then select a Quality Option setting. See the following section for details on the Quality Option settings.
See Quality Option

Select Sheet as the Source setting.

Select the paper Type setting that matches the paper you loaded in the printer.
Media Type Settings

Select the paper Size setting that matches the paper you loaded in the printer.

Click the Page Layout tab, and select Multi-Page, then select Poster Printing. Click the up or down arrow to select 2x2, 3x3, or 4x4.

Click Settings to adjust the way your poster will print. The Poster Settings window opens.

Select the following settings.

Print Cutting Guides

Select this check box to turn the cutting guide options on.

Overlapping Alignment Marks

Slightly overlaps the panels and prints alignment markers so that the panels can be aligned more precisely.

Trim Lines

Prints border lines on the panels to guide you when trimming the pages.

Note:
If you want to print only a few of the panels without printing the entire poster, click the panels that you do not wish to print.

Click OK to close the Poster Settings window.

Click OK to close the printer driver settings window.

After finishing all of the steps above, start printing.


[Top]

How to make a poster from your printouts

Here is an example of how to make a poster with 2x2 selected under Poster Printing and Overlapping Alignment Marks selected as the print cutting guide. Refer to the accompanying illustrations as well.

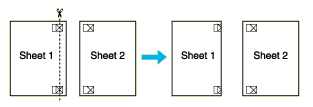

Cut off the margin of Sheet 1 along a vertical line through the center of the top and bottom cross marks, as shown in the illustration below.

Place the edge of Sheet 1 on top of Sheet 2 and align the cross marks, then temporarily tape the two sheets together from the back side.

Cut the taped sheets in two along a vertical line through the alignment markers (this time, a line to the left of the cross marks), as shown in the illustration below.

Align the edges of the paper together using the alignment markers and tape them from the back side of the paper.

Repeat the instructions from step 1 to step 4 to tape Sheets 3 and 4 together.

Repeat the instructions from step 1 to step 4 to tape the top and bottom faces of the paper.

Cut off the remaining margins.

Warning:
Be careful when using sharp tools.
