How to Print

Printing on Envelopes

Handling envelopes
Driver settings for Windows
Driver settings for Mac OS 9
Driver settings for Mac OS X

Handling envelopes

Refer to the section below for loading envelopes.

Loading Envelopes

Refer to the section below for the printable area.
See Printable area

[Top]

Driver settings for Windows

Access the printer driver.

Accessing the Printer Software for Windows

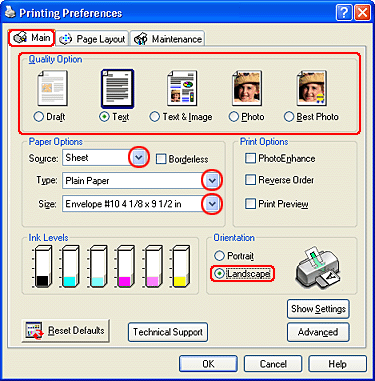

Click the Main tab, then make the Quality Option setting. See the following section for details on the Quality Option settings.
See Quality Option

Select Sheet as the Source setting.

Select Plain Paper as the Type setting.

Select the appropriate envelope size from the available Size settings. You can also define a custom paper size. For details, see the following section.

Making User Defined Paper Sizes for Windows

Select Landscape as the Orientation setting.

Click OK to close the printer driver settings dialog box.

Print your data.

Note:

The Economy setting that is offered under Paper & Quality Options in the Advanced menu is not enabled when printing envelopes.

[Top]

Driver settings for Mac OS 9

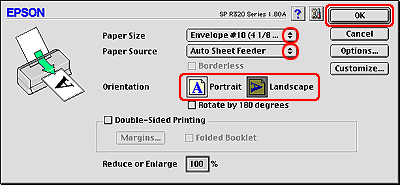

Access the Page Setup dialog box.

Accessing the Printer Software for Mac OS 9

Select the appropriate envelope size from the available Paper Size settings. You can also define a custom paper size. For details, see the following section.

Making User Defined Paper Sizes for Mac OS 9

Select Auto Sheet Feeder as the Paper Source.

Select Landscape as the Orientation setting.

Click OK to save the settings and close the Page Setup dialog box.

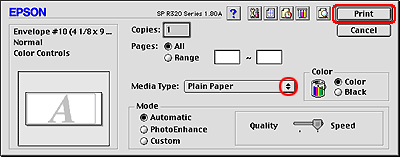

Access the Print dialog box.

Accessing the Printer Software for Mac OS 9

Select Plain Paper as the Media Type setting.

Click Print to start printing.

Note:

The Economy Custom mode and the Economy setting that is offered under Print Quality in the Advanced dialog box are not enabled when printing envelopes.

[Top]

Driver settings for Mac OS X

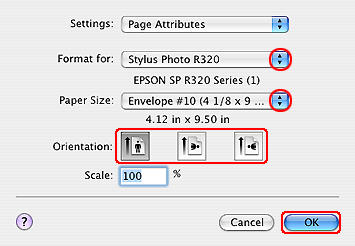

Access the Page Setup dialog box.

Accessing the Printer Software for Mac OS X

Select Stylus Photo R320 as the Format for setting.

Select the appropriate envelope size as the Paper Size setting.

Select Landscape as the Orientation setting.

Click OK to close the Page Setup dialog box.

Access the Print dialog box.

Accessing the Printer Software for Mac OS X

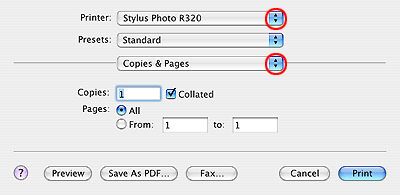

Select Stylus Photo R320 as the Printer setting, then make the Copies & Pages settings.

Note:

The Copies & Pages settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

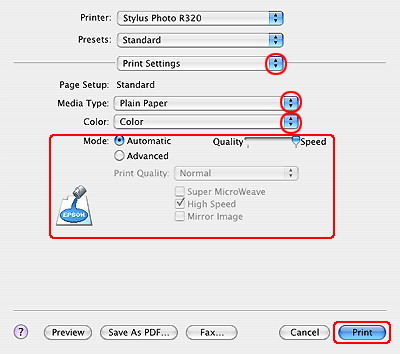

Select Print Settings from the pop-up menu.

Select Plain Paper as the Media Type setting, then make the appropriate Color and Mode settings.
See Print Settings

Click Print to start printing.
