Scanning / How to Scan

Scanning an Image

Turning on this product
Placing your materials on the document table
Starting the software and scanning an image

EPSON Scan provides three modes for you to make any scanning settings; Full Auto Mode, Home Mode, and Professional Mode. This section describes how to scan an image in the Full Auto Mode. The Full Auto Mode lets you scan images using automatically-adjusted settings. For more details, see Choosing an Appropriate Scanning Mode.

Note:

You cannot scan an image with a size that exceeds the available memory or disk space. If you try to scan the image, an alert appears on the screen.

Note for Macintosh users:

Most illustrations shown in this section are for Windows, so they may vary in appearance from what actually appears on your screen. The instructions are the same, except as noted.

Caution:

Before starting the following steps, make sure that all the necessary software including EPSON Scan has been installed. For details about how to install the software, see the Setup Sheet.

Turning on this product

Before turning on the Style Photo RX600, make sure the transportation lock is moved to the unlocked position and that the USB cable is connected to your computer.

Press the  On button to turn on the Style Photo RX600. All mode lights flash, and then the button for the selected mode lights up.

[Top]

Placing your photo, document, or film on the document table

You can scan reflective documents (like photo or paper), or use the film holder to place films or slides. See the appropriate link below.

Placing Photos and Documents on the Document Table.

Using the Film Holder

[Top]

Starting the software and scanning an image

You can start EPSON Scan in the following ways.

• Start EPSON Scan directly as a stand alone application

• Start EPSON Scan from a TWAIN-compliant application

This section provides you how to start EPSON Scan from ArcSoft PhotoImpression. For details on the another way to start EPSON Scan, see Starting EPSON Scan.

Start ArcSoft PhotoImpression.

For Windows users:
Click Start, point to All Programs (for Windows XP users) or Programs (for Windows Me, 98, or 2000 users), and select ArcSoft PhotoImpression 5. Click PhotoImpression 5.

For Macintosh users:
Double-click the Applications folder in Macintosh HD, and then double-click the PhotoImpression 5 folder. Finally, double-click the PhotoImpression icon.

Click the Camera/Scanner button.

Select a file format, location, a file name, and then click EPSON Stylus Photo RX600. EPSON Scan starts. See File formats for the file formats.

Note for Windows XP users:

Do not choose WIA-EPSON Stylus Photo RX600 from the menu to select this product. If you select it, you cannot use the Epson scanner function fully.

EPSON Scan automatically recognizes the document source and type.

If you want to make more settings, click Pause and then click Options to open the Options dialog box. For more details on settings, see the online help by clicking the Help button in the Option dialog box.

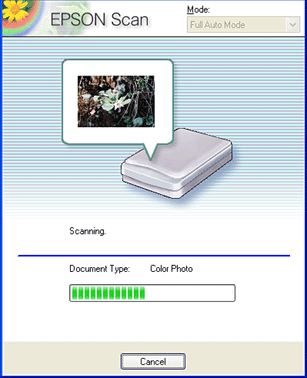

After EPSON Scan has previewed and recognized the document type, the following window appears. You can see the document type in the window.

EPSON Scan automatically locates the target images and modifies their skew, and then starts scanning.

Caution:

Do not open the scanner unit during scanning or copying; otherwise, you may damage this product.

Note:

Be aware that clicking Cancel on this screen terminates EPSON Scan.

The scanned image is opened in ArcSoft PhotoImpression.

Note:

If you don't get good results when scanning in Full Auto mode, try Home Mode or Professional Mode.

If you cannot scan film in Full Auto Mode, switch to Home Mode or Professional Mode and use a marquee with the Normal Preview window. See You cannot scan the film from the Full Auto Mode or the Thumbnail Preview for details.

To further edit scanned images, see your application's documentation.

File formats

The following table lists some common image file formats. Select an appropriate format supported by your image processing application when you save image files.

[Top]
