This product allows you to print without borders on all four sides of the paper. Follow the steps described below for Borderless printing.
|
Note:
|
| -
This feature is not available for all paper (media) and driver settings.
|
|
Compatible paper
You can use the following paper with this feature:
Photo Quality Ink Jet Paper
|
Letter, A4, 5 x 7"
|
Matte Paper - Heavyweight
|
Letter, A4
|
Photo Paper
|
Letter, A4, 4 x 6" in
|
Premium Glossy Photo Paper
|
Letter, A4, 4 x 6 in
|
Premium SemiGloss Photo Paper
|
Letter, A4
|
|
Note:
|
| -
Printing with this feature takes longer than with normal printing.
|
|
| -
Print quality may decline in the top and bottom areas of the printout, or the area may be smeared when printing on paper other than those listed above. Print a single sheet to check the quality before printing large jobs.
|
|
[Top]
Preparing the image for printing
Because this option enlarges the image to a size slightly larger than the paper size, the portion of the image that extends beyond the edges of the paper will not be printed.
When saving an image in an application for printing, you need to adjust the image to the size of the paper. If your application has margin settings, make sure they are set to zero before printing.
[Top]
Loading paper
Refer to the following section for details on loading the paper in the sheet feeder.
[Top]
Driver settings for Windows
After you have loaded the paper, change your printer driver settings for Borderless printing.
|

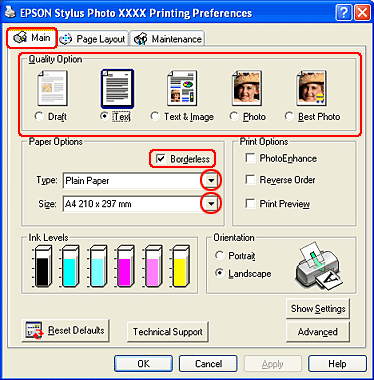

Access the printer driver.
|
|
Click the Main tab, then choose the Quality Option setting. For details, see online help.
|
|
Select the Borderless check box.
|
|
Choose the appropriate Paper Type setting.
|
|
Choose the appropriate Paper Size setting.
|
|
Click OK to close the printer driver settings dialog box.
|
After finishing all steps above, start printing. Print one test copy and examine the results before printing an entire job.
|
Note:
|
|
You can control the amount of the image that extends beyond the edges of the paper during borderless printing. When the Borderless check box is selected on the Main menu, the Borderless Expansion slider becomes available on the Page Layout menu.
|
|
Driver settings for Mac OS X
After you have loaded the media, change your printer driver settings for Borderless printing.
|

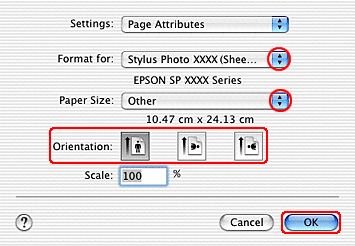

Access the Page Setup dialog box.
|
|
Select Stylus Photo RX600 (Sheet Feeder - Borderless) as the Format for setting.
|
|
Make the appropriate Paper Size and Orientation settings.
|
|
Click OK to close the Page Setup dialog box.
|
|

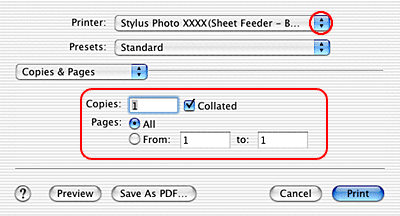

Access the Print dialog box.
|
|
Select Stylus Photo RX600 (Sheet Feeder - Borderless) as the Print setting, then make the Copies & Pages settings.
|
| |
Note:
|
| | -
The Copies & Pages settings available are a standard feature of Mac OS X. See your operating system's documentation for details.
|
|
| | -
Always match the Format for setting in the Page Setup dialog box and the Printer setting in the Print dialog box. Otherwise the data may not be printed correctly.
|
|
|
Select Print Settings from the pop-up menu.
|
|
Make the appropriate Media Type, Color, and Mode settings. See online help for details.
|
|
Click Print to start printing.
|
|
Note:
|
| -
Print one test copy and examine the results before printing an entire job.
|
|
| -
You can control the amount of the image that extends beyond the edges of the paper during borderless printing. See online help for details.
|
|
[Top]
[Top]
Driver settings for Mac OS 9.x
After you have loaded the media, change your printer driver settings for Borderless printing.
|

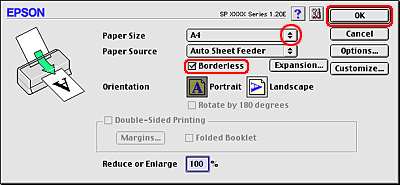

Access the Page Setup dialog box.
|
|
Make the appropriate Paper Size setting.
|
|
Select the Borderless check box.
|
|
Click OK to save the settings and close the Page Setup dialog box.
|
|
Access the Print dialog box.
|
|
Make the appropriate Media Type setting.
|
|
Click Print to start printing.
|
|
Note:
|
| -
Print one test copy and examine the results before printing an entire job.
|
|
| -
You can control the amount of the image that extends beyond the edges of the paper during borderless printing. When the Borderless check box is selected on the Page Setup dialog box, the Expansion button becomes available.
|
|
[Top]
