Loading Paper

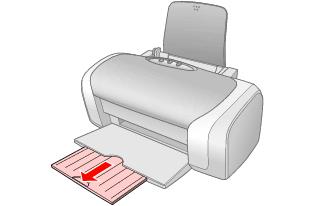

Open the output tray and its extension.

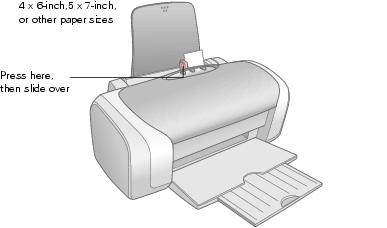

Squeeze the left edge guide and slide it to the left.

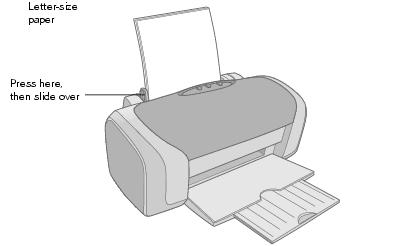

Insert the paper, printable side up, against the right edge guide.

You can load up to 100 sheets of plain paper and up to 20 sheets of photo paper. (See Special Papers for capacity guidelines on other paper types.)

Note: The type of paper you choose affects the way your printout looks, so be sure to select the correct paper for your job. If you are just printing a rough draft of an image, plain paper is fine. However, for the best results, you'll want to use one of Epson's special ink jet papers designed for your printer. For example, your photos will look great printed on Epson Premium Glossy Photo Paper. See Special Papers for more information.

Slide the left edge guide against the left edge of the paper (but not too tightly).

Don't load paper above the arrow on the left edge guide. Make sure the paper is under the tabs on the left and right edge guides.

Load the printable side face-up. It's often brighter or whiter than the other side.

Always load the short edge first, even when printing in landscape mode.

Load letterhead or preprinted paper into the printer top edge first.

If you experience paper feeding problems, try loading fewer sheets.

If you're using special paper, check the package for special loading instructions.

Envelopes

Open the output tray and its extension.

Squeeze the left edge guide and slide it to the left.

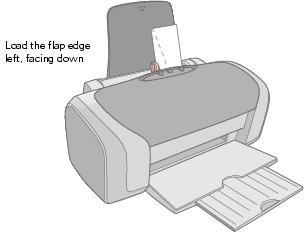

Load up to 10 envelopes at a time, flap edge left, printable side up, against the right edge guide.

Note: For best results, press each envelope flat before loading, or load one envelope at a time.

Slide the left edge guide against the envelopes (but not too tightly).

Envelope as the paper Type or Media Type setting

The correct envelope size as the Size or Paper Size setting

Landscape as the Orientation setting

Printing in Windows

Printing with Macintosh OS X

Special Papers


Paper name*	Size	Part number
Epson Ultra Premium Glossy Photo Paper	Borderless 4 × 6 in. (102 × 152 mm)	S041934
Epson Ultra Premium Glossy Photo Paper	Letter (8.5 × 11 in. [216 × 279 mm])	S041935
Epson Premium Bright White Paper	Letter (8.5 × 11 in. [216 × 279 mm])	S041586
Epson Premium Glossy Photo Paper	Borderless 4 × 6 in. (102 × 152 mm)	S041808 S041727
	Borderless 8 × 10 in. (203 × 254 mm)	S041465
	Letter (8.5 × 11 in. [216 × 279 mm])	S041286
Epson Premium Semigloss Photo Paper	Letter (8.5 × 11 in. [216 × 279 mm])	S041331
Epson Glossy Photo Paper	4 × 6 in. (102 × 152 mm)	S041809
Epson Glossy Photo Paper	Letter (8.5 × 11 in. [216 × 279 mm])	S041141
Epson Matte Paper Heavyweight	Letter (8.5 × 11 in. [216 × 279 mm])	S041257
Epson Semigloss Scrapbook Photo Paper	Letter (8.5 × 11 in. [216 × 279 mm])	SCR1001
PremierArt Matte Scrapbook Photo Paper for Epson	Letter (8.5 × 11 in. [216 × 279 mm])	SCR1002
Epson Double-Sided Matte Paper	Letter (8.5 × 11 in. [216 × 279 mm])	S041568

You can purchase genuine Epson ink and paper from an authorized Epson reseller. To find the nearest reseller, please call your nearest Epson sales office as described in Where To Get Help.


Paper type	Loading capacity
Premium Bright White Paper	80 sheets
Ultra Premium Glossy Photo Paper Premium Glossy Photo Paper Premium Semigloss Photo Paper Glossy Photo Paper Matte Paper Heavyweight Double-Sided Matte Paper Semigloss Scrapbook Photo Paper PremierArt Matte Scrapbook Photo Paper	20 sheets
