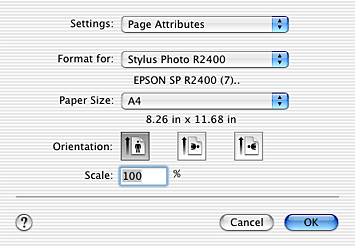

Page Setup Dialog Box

Settings

Page Attributes

Displays the page setup settings.

Custom Paper Size

Displays your custom paper size settings.

Summary

Displays the list of current setting items.

Format for

Stylus Photo R2400

Select your printer.

Paper Size

Manual - Front

Select this mode to print on paper fed into the front manual feed slot.

Roll Paper - Borderless Banner

Select this mode when you want to print multi-page data continuously on roll paper without margins.

Roll Paper - Borderless

Select this mode to print on roll paper without margins.

Roll Paper

Select this mode to print on roll paper with standard margins.

Sheet Feeder - Borderless

Select this mode to print without margins.

Manual - Roll

Select this mode to print single sheets of paper, fed into the rear manual feed slot, with standard margins.

Manual - Roll (Borderless)

Select this mode to print single sheets of paper, fed into the rear manual feed slot, without margins.

Orientation

Select the printing orientation.

Scale

Input the scale to reduce or enlarge the size of your data.
