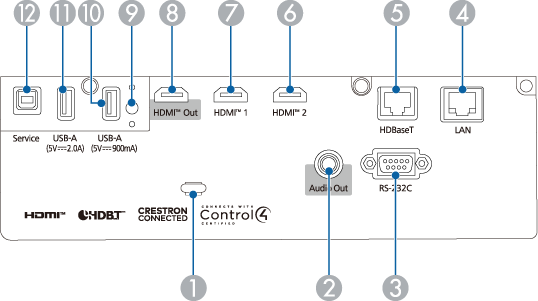

Projector Parts - Interface Ports

Name		Function
	Cable holder	Pass a commercially available cable tie through here to secure cables.
	Audio Out port	Outputs audio from the current input source to an external speaker.
	RS-232C port	Connects an RS-232C cable to control the projector from a computer. (You do not need to use this port normally.)
	LAN port	Connects a LAN cable to connect to a network.
	HDBaseT port	Connects a LAN cable to the optional HDBaseT Transmitter. This port is compatible with HDCP2.3.
	HDMI2 port	Inputs video signals from HDMI compatible video equipment and computers. This port is compatible with HDCP2.3.
	HDMI1 port
	HDMI Out port	Connecting an HDMI cables from this port to the HDMI port of another projectors lets you create and project a single unified image. This port is compatible with HDCP2.3.
	Wireless LAN module fixing screw	Secures the wireless LAN module cover. (EB-L690SE/EB-L695SE)
	USB-A () port	Connects a USB device and projects movies or images. Use to connect the optional document camera. Use to connect the wireless LAN module. Use to connect the external camera. Use to connect a USB memory device to save error and operation log files. It is also used for batch settings and firmware update. The method for updating the firmware differs depending on your projector model. For details, see the "List of Functions" in this manual. In this guide, USB-A () and USB-A () ports are collectively referred to as the USB-A port.
	USB-A () port	Connects a USB device and projects movies or images. Use to connect the optional document camera. Use to connect the external camera. Use to connect a USB memory device to save error and operation log files. It is also used for batch settings and firmware update. The method for updating the firmware differs depending on your projector model. For details, see the "List of Functions" in this manual. In this guide, USB-A () and USB-A () ports are collectively referred to as the USB-A port.
	Service port	This port is used for batch settings and firmware update. The method for updating the firmware differs depending on your projector model. For details, see the "List of Functions" in this manual.
