The Control Panel

SelecType Settings

When to use SelecType
Basic SelecType setting procedure
SelecType menus
Printing a nozzle check pattern
Performing the head alignment
Aligning the print heads
Setting the paper thickness
Printing a status sheet

When to use SelecType

The SelecType mode enables you to make printer settings similar to those you would normally make in the driver or software, as well as other additional settings — directly through the control panel. Keep the following points in mind when making SelecType settings:


[Top]

Basic SelecType setting procedure

The following shows the basic SelecType setting procedure.

Enter the SelecType mode
Make sure that READY is displayed on the LCD panel, then press the SelecType button.
The first menu, PRINTER SETTING MENU is displayed.

Select a menu
Press the SelecType button to select a desired menu.
For example: PRINTER SETTING MENU

To return to the READY status, press the Pause button.

Select an item
Press the Item button. The first item of the selected menu is displayed. Press the Item button to select a desired item.
For example: PAGE LINE = ON* ( shows that the displayed parameter is the default value.)

If the item is for execution only, press the Enter button to execute the function for the item. After execution, the printer exits SelecType mode and returns to the READY status.
For example: INIT. PANEL = EXEC (Initializes the current panel settings to the factory-set values.)

Select a parameter
Press the + or - button to select a parameter for the item.
For example: PAGE LINE = OFF. Note that the asterisk () disappears. This means that the selected parameter (OFF) is not yet stored as the default value.

To display the next item without changing the default value, press the Item button.

Set the parameter
Press the Enter button to store the selected parameter as the factory set value.
For example: PAGE LINE = OFF* is displayed.

Press the Item button to return to step 3 if you want to select another item.

Exit the SelecType mode
Press the Pause button.

Note:
  • To exit the SelecType mode at anytime, press the Pause button.
  • To return to step 2, press the SelecType button. Press the SelecType button again to exit the SelecType mode.


[Top]

SelecType menus

The six SelecType menus are described below.

Printer Setting menu (PRINTER SETTING MENU)

Various printer settings are available.

Test Print menu (TEST PRINT MENU)

You can print a nozzle check pattern and status sheet.

Printer Status menu (PRINTER STATUS MENU)

You can see the firmware version, total prints since delivery, and ink cartridge/parts life, on the LCD.

Paper Configuration menu (PAPER CONFIG. MENU)

You can register the paper thickness and ink drying time, and select the specified value.

Cutter Replacement menu (CUTTER REPLACE MENU)

Follow this menu when you replace the cutter. For details, see Replacing the Paper Cutter.

Head Alignment menu (HEAD ALIGNMENT MENU)

You can correct any head misalignment to obtain optimum printing results. For details, see Performing the head alignment.

Printer Setting menu (PRINTER SETTING MENU)

This menu contains the following settings.

PLATEN GAP (Platen gap adjustment)

Normally, leave this set to AUTO. If you find that the printed image is smeared, select WIDE.

PAGE LINE

Select whether page lines are printed on the roll paper.

The Print Page Line operation changes according to the Auto Cut settings as shown.

Roll Auto Cut light

Print Page Line

Printer's Operation

On

On

Prints page line on the right side only, and cuts paper automatically after the print job.

On

Off

Cuts paper automatically after the print job.

Roll Cutter Off light

Print Page Line

Printer's Operation

On

On

Prints page lines on the right side and below the document.

On

Off

Does not print page lines nor cut.

Note:
When the Sheet light is on, the Print Page Line setting is not available.

INTERFACE (Interface selection)

When AUTO is selected, the printer automatically switches between interfaces depending on which one is receiving data first. If no more print jobs have been received, the printer returns to an idle state after 10 seconds or more. You can also select the interface from parallel, USB, option1, or 2.

CODE PAGE (Code page selection)

Select the code page from PC437 and PC850.

ROLL MARG (Roll paper margin selection)

Select margins for roll paper from 3 mm, 15 mm, and T/B 15 mm.

Margin settings

Top/Bottom

Left/Right

3 mm

3 mm

3 mm

15 mm

15 mm

15 mm

T/B 15 mm

15 mm

3 mm

Note:
The combination of "Top/Bottom = 3 mm, Left/Right = 15 mm" is not selectable.

When the same image is printed with a 3 mm margin and a 15 mm margin and compared, you may notice that part of the right side of the 15 mm margin image is not printed.

PAPER SIZE CHK (Paper width detection)

When you select ON, the printer stops printing and RELOAD PAPER appears on the printer's control panel when the paper width loaded in the printer does not match the image width. When OFF is selected, the printer continues to print even if the paper width does not match the images and the printer may print off of paper.

INIT. PANEL (Panel settings initialization)

Erases all the SelecType settings that you have made, and resets them all to the factory default settings.

Test Print menu (TEST PRINT MENU)

This menu contains the following settings.

NOZZLE CHECK (Nozzle check pattern printing)

Prints the nozzle check pattern for six colors. From the printing results, you can check for missing dots. Also, the firmware version is printed. For details, see Printing a nozzle check pattern.

You can perform nozzle check pattern printing using the utility.

STATUS CHECK (Status printing)

Prints the current SelecType status. For details, see Printing a status sheet.

Printer Status menu (PRINTER STATUS MENU)

This menu allows you to see the printer status from the LCD. This menu contains the following settings.

VERSION (Firmware version)

Shows the firmware version.

INK LEFT-C/M/LC/LM/Y/K (Remaining ink)

Displays the amount of ink left in the Cyan/Magenta/Light Cyan/Light Magenta/Yellow/Black ink cartridges.

E

F

(100-81%)

E

F

(80-61%)

E

F

(60-41%)

E

F

(40-21%)

E

F

(20-11%)

nn%

(less than 10%)

TOTAL PRINTS, WASTE INK, CR MOTOR (Carriage motor life), PF MOTOR (Paper feed motor life), HEAD UNIT (Head unit life), CLEANER (Cleaning unit life), CUTTER LIFE

For maintenance service persons only.

Paper Configuration menu (PAPER CONFIG. MENU)

This menu allows you to register four kinds of paper thickness together with ink drying time from 1 to 4. You can select whether the paper thickness is determined automatically (STD (standard)) or by the registered value (1, 2, 3, or 4). You can also register the ink drying time for the STD setting. How to register and recall the paper thickness setting is described in Setting the paper thickness.

Cutter Replacement menu (CUTTER REPLACE MENU)

This menu enables you to replace the paper cutter. For a detailed description, see Replacing the Paper Cutter.

Head Alignment menu (HEAD ALIGNMENT MENU)

This menu allows you to correct any head misalignment to obtain optimum printing results. For details, see Performing the head alignment.

You can perform the head alignment using the utility for the paper supplied by EPSON.


[Top]

Printing a nozzle check pattern

A nozzle check pattern can be printed to check six colors for missing dots.

Load paper in your printer as described in Using Roll Paper or Using Cut Sheet Media.

In SelecType mode, press the SelecType button until TEST PRINT MENU is displayed on the LCD panel.

Press the Item button to display NOZZLE CHECK.

Press the Enter button.
The nozzle check pattern is printed as shown below. After printing, the printer exits the SelecType mode and returns to the READY status.

Nozzle check pattern examples:

good

head cleaning necessary

If you find that any segments are missing from the test lines in the pattern, you need to clean the print heads. Press the Cleaning button on the control panel for more than 3 seconds or access the Head Cleaning utility from the EPSON printer utilities in your software. See Using the Printer Utilities.

Caution:
Before you start printing images, make sure that the nozzle check pattern printing is complete. Otherwise, print quality may decline.


[Top]

Performing the head alignment

The procedure for head alignment using SelecType is described below.

General flow of the head alignment procedure

Load paper.

Set the paper thickness if necessary.

Print the alignment patterns (all or single).

For each alignment pattern, find the set that has the smallest gaps and register the number.


[Top]

Aligning the print heads

Load roll paper in your printer as described in Using Roll Paper.

Note:
Select Roll Cutter Off. Paper that is too thick may damage the paper cutter.

In SelecType mode, press the SelecType button until HEAD ALIGNMENT MENU is displayed on the LCD panel.

Press the Item button. PAPER THICK = STD appears. When you want to print on EPSON media, leave this setting as STD. When you want to print on non-EPSON media, enter the thickness value of the paper in 0.1 mm increments by pressing the + or - button.

Press the Enter button to register your value. ADJUST. PATT. = ALL appears.

If you want to print both adjustment patterns, press the Enter button. If you want to print a single adjustment pattern, press the + or - button until the pattern number (#1 and #2) that you want to adjust appears. Then press the Enter button.

Note:
It takes 10 minutes or less to print both adjustment patterns.

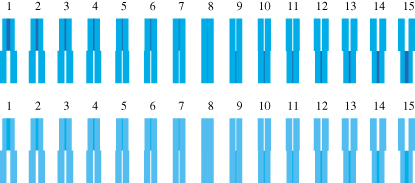

Head alignment pattern examples:

After printing, the pattern number and current set number are displayed (for example, #1 = 8). Select the set that has the smallest gaps, then press the + or - button to display the number for that set.

Note:
If set 8 shows the smallest gaps out of all the printed patterns, the print heads are aligned. Press the Pause button to exit the mode.

Press the Enter button to register the set number. The next pattern number appears. Then repeat step 6.

After you set the pattern(s), press the Pause button to return to the READY status.

Note:
You can return to step 6 by pressing the Enter button.


[Top]

Setting the paper thickness

When you use media other than EPSON special media, you may need to set the paper thickness. You can select whether the thickness of the paper you are using is determined automatically (STD (standard)) or by the registered value (1, 2, 3, or 4) in the Paper Settings menu. To register and recall the settings you made, see the following sections. You can also register the ink drying time for respective paper settings including STD. To select the registered setting, see Selecting the registered settings.

Registering the settings

To register the paper thickness and ink drying time settings, follow the steps below.

Load the paper that you want to check. See Using Roll Paper or Using Cut Sheet Media.

Note:
When you load roll paper, select Roll Cutter Off. Paper that is too thick may damage the paper cutter.

In the SelecType mode, press the SelecType button until PAPER CONFIG. MENU appears on the LCD panel.

Press the Item button. PAPER NUMBER = STD* appears.

Press the + or - button to select the number you want to register as the setting. When you select STD, skip to step 8 to set the ink drying time.

Press the Item button. THICK. PAT. appears. Then press Enter. The printer prints the paper thickness test pattern.

Paper thickness test pattern example:

Examine the printed pattern to determine which set of lines are aligned (show the smallest gap), and note the corresponding number.

You may see PAPER THICK. NO. = 1*. Press the + or - button to select the number noted in step 5.

Note:
The default value depends on the PAPER THICK. value in the Head Alignment menu and is displayed as a PAPER THICK. NO. in the Paper Configuration menu as shown below:

PAPER THICK. value

PAPER THICK. NO.

0.0 MM
to
1.6 MM

1
to
17

Press the Enter button to save the selected value.

Press the Item button. DRYING TIME = 0 MIN* appears. Press the + or - button to select time in minutes.

Press the Enter button to save the selected value.

Press the Item button. SUCTION = NORM* appears. Press the + or - button to select NORM or LOW.

Note:
When you are loading very thin paper, set the Suction setting to LOW.

Press the Enter button to save the selected value.

Press the Pause button to exit the SelecType mode.

Selecting the registered settings

To select the registered settings, follow the steps below.

In the SelecType mode, press the SelecType button until PAPER CONFIG. MENU appears on the LCD panel.

Press the Item button. You may see PAPER NUMBER = 1*.

Press the + or - button to select the number registered that you want to use. Then press the Enter button.

Press the Pause button to exit the SelecType mode.


[Top]

Printing a status sheet

In SelecType mode, a status sheet can be printed to see the current SelecType default values.

Load paper as described in Using Roll Paper or Using Cut Sheet Media.

In SelecType mode, press the SelecType button until TEST PRINT MENU is displayed.

Press the Item button until STATUS CHECK = PRINT is displayed.

Press the Enter button.
A status sheet is printed. After printing, the printer exits SelecType mode and returns to the READY status.
