Scan Images for Viewing on the Computer Screen

Scan images for viewing in the Full Auto Mode
Scan images for viewing in the Home Mode
Scan documents for viewing in the Office Mode
Scan images for viewing in the Professional Mode

When you want to scan images for viewing on the computer screen, set the output resolution to 96 dpi. The maximum resolution monitors can display is 96 dpi, so scanning at a higher resolution is unnecessary. Low resolution image files are smaller and easier to handle. Use a low resolution to scan images for use on the Internet or in e-mail.

Note:
If the images you're sending through e-mail are intended for printing, you need to use a higher resolution. See Scan Images for Printing.

Scan images for viewing in the Full Auto Mode

Follow the steps below to scan images for on-screen viewing in the Full Auto Mode.

Note:
This mode cannot be used when the optional Automatic Document Feeder is installed.

Place your materials on the document table.
Placing Photos and Documents on the Document Table
Loading and Setting Film on the Document Table

Start EPSON Scan.
Starting EPSON Scan
Choosing and Changing the Scanning Mode

EPSON Scan starts previewing and recognizing the document source and type.

Click Pause, and then click Options.

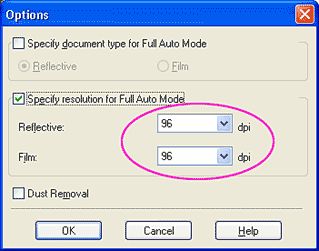

Select the Specify resolution for Full Auto Mode check box.

Select 96 from the list for Reflective or Film, and then click OK.

Click Scan.

The scanned images are sent to the application or saved to the specified folder.

Note:
  • If EPSON Scan cannot recognize the correct document source, you can specify the document type in the Options dialog box. For details, see the online help.
  • Depending on the image you want to scan, you may not get the expected image. In this case, scan the image in the Home Mode or Professional Mode.


[Top]

Scan images for viewing in the Home Mode

Follow the steps below to scan images for on-screen viewing in the Home Mode.

Place your materials on the document table.
Placing Photos and Documents on the Document Table
Loading and Setting Film on the Document Table

Note:
In the Home Mode, you cannot use the optional Automatic Document Feeder. Select the Office Mode or the Professional Mode when you want to use the Automatic Document Feeder.

Start EPSON Scan.
Starting EPSON Scan
Choosing and Changing the Scanning Mode

The following window appears.

Specify the Document Type and Image Type settings to match your images.

Select Screen/Web as the Destination.

Click Preview to preview the images.

Specify the output size of the scanned image as the Target Size and make adjustments using the image quality adjustment tools, if necessary.

Click Scan.

The scanned images are sent to the application or saved to the specified folder.


[Top]

Scan documents for viewing in the Office Mode

Follow the steps below to scan documents for on-screen viewing in the Office Mode.

Note:
This mode can be used only when the optional Automatic Document Feeder is installed.

Place your materials on the scanner.

Loading Documents into Your Automatic Document Feeder

If you want to manually place your materials on the document table, see Loading documents manually for details.

Start EPSON Scan.
Starting EPSON Scan
Choosing and Changing the Scanning Mode

The following window appears.

Specify the Image Type and Destination settings to match your images.

Select 96 dpi from the Resolution list.

Click Preview to preview the images.

Note:
If you do not need to preview an image, click Scan to scan documents without preview.

Make adjustments using the image quality adjustment tools, if necessary.

Click Scan.

The scanned images are sent to the application or saved to the specified folder.


[Top]

Scan images for viewing in the Professional Mode

Follow the steps below to scan materials for on-screen viewing in the Professional Mode.

Place your materials on the document table.
Placing Photos and Documents on the Document Table
Loading and Setting Film on the Document Table

When using the Automatic Document Feeder, follow the steps explained in Loading Documents into Your Automatic Document Feeder to scan documents.

Start EPSON Scan.
Starting EPSON Scan
Choosing and Changing the Scanning Mode

The following window appears.

Specify the Original and Image Type settings to match your images.

Select 96 dpi from the Resolution list.

Click Preview to preview the images.

Specify the output size of the scanned image as the Target Size and make adjustments using the image quality adjustment tools, if necessary.

Click Scan.

The scanned images are sent to the application or saved to the specified folder.


[Top]
