How to Print

Printing Photos

Handling single sheets of paper
Driver settings for Windows
Driver settings for Mac OS X

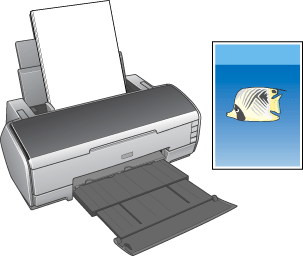

Handling single sheets of paper

Refer to the section below for details on loading single sheets of paper.

Loading Single Sheets of Paper

Some types of special media, such as Velvet Fine Art Paper, Watercolor Paper-Radiant White and UltraSmooth Fine Art Paper, should be loaded into the rear manual feed slot. Refer to the section below for details on loading single sheets of paper into the rear manual feed slot.

Loading Single Sheets of Paper into the Rear Manual Feed Slot

When using special media, refer to the section below.

Using Special Media


[Top]

Driver settings for Windows

Note:
If you want to print high quality black-and-white photos, use Advanced B&W Photo. For more details, see the following section.
See B&W Photo Printing

Open the file you want to print.

Access the printer driver.
Accessing the Printer Software for Windows

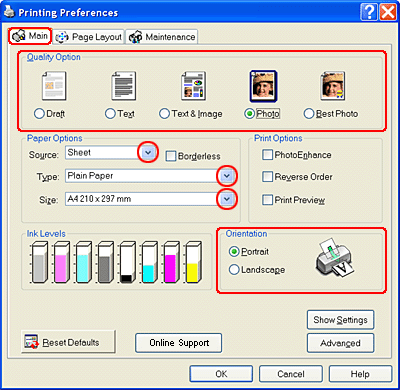

Click the Main tab, then make the Quality Option setting. See the following section for details on the Quality Option settings.
See Quality Option

Select Sheet as the Source setting when feeding paper into the sheet feeder. Select Manual - Roll as the Source setting when feeding paper into the rear manual feed slot.

Make the appropriate Type setting.
Media Type Settings

Make the appropriate Size setting. You can also define a custom paper size. For details, see the following section.
Making User Defined Paper Sizes for Windows

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Click OK to close the printer driver settings dialog box.

Print your data.


[Top]

Driver settings for Mac OS X

Open the file you want to print.

Access the Page Setup dialog box.
Accessing the Printer Software for Mac OS X

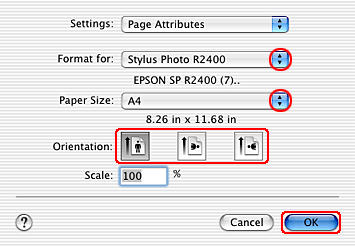

Select Stylus Photo R2400 as the Format for setting.

Make the appropriate Paper Size and Orientation settings.

Click OK to close the Page Setup dialog box.

Access the Print dialog box.
Accessing the Printer Software for Mac OS X

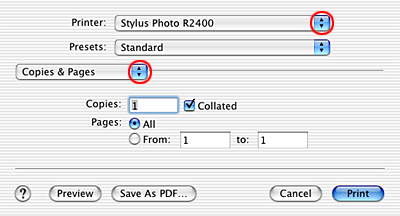

Select Stylus Photo R2400 as the Printer setting, then make the Copies & Pages settings.

Note:
The Copies & Pages settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

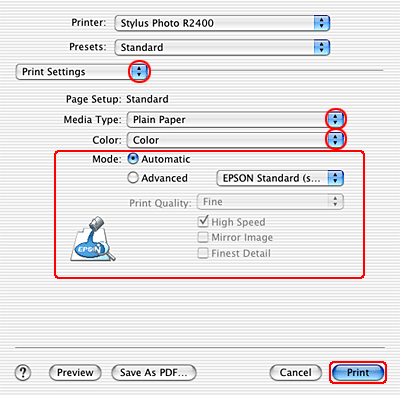

Select Print Settings from the pop-up menu.

Make the appropriate Media Type, Color, and Mode settings.
See Print Settings
Media Type Settings

Note:
If you want to print high quality black-and-white photos, use Advanced B&W Photo. For more details, see the following section.
See B&W Photo Printing

Click Print to start printing.


[Top]
