/ Printer Report Details screen

Printer Report Details screen

Navigation: To display this screen, click each area in Breakdown on the Printers Report screen.

Displays the following information for all registered printers:

  • Total hourly print volume, print volume statistics, operating status of individual printers

  • Job history of individual printers

Note:

Some printers cannot record print history. Therefore, the areas related to the printer's print history, such as operating results, graphs, and reports, may not be displayed. In addition, the values may not be reflected in the operating results and reports of all printers.

Number

Item

Description

A

Breadcrumbs

Displays the path from the Portal Dashboard Home screen to the displayed screen.

B

Title

Displays the screen title.

C

Unit

Select the unit you want to display, such as graphs and statistical data.

D

Period settings

Displays the period of the set report. Click to display the calendar and set the report period.

E

Details for printer operation results

Displays the total hourly print volume, print volume statistics, and the operating status of the selected printer.

F

Job List

Displays the details of the print jobs.

G

Printer Operation Status

Click to open the Remote Panel screen.
C. Unit

You can select the unit you want to display in the graph. Click this setting and select the unit you want to display from the drop-down menu.

  • Number of Jobs: Set the number of print jobs sent from the printer as the unit.

  • m: Set the length (m) of the paper used in the print job as the unit.

  • m²: Set the area (m²) of paper used in the print job as the unit.

  • ft: Set the length (ft) of the paper used in the print job as the unit.

  • ft²: Set the area (ft²) of paper used in the print job as the unit.

  • Sheets: Set the number (Sheets) of the paper used in the print job as the unit.

  • imp.: View the actual print job.

D. Period setting

You can specify a date range for which you want to output a report.

  • : Display the previous and next months.

  • Month: Click to select any month.

  • Year: Click to select any year.

  • Calendar: You can set any time period by clicking the start and end dates in the calendar.

    Calendar: You can set any time period by clicking the start and end dates in the calendar.

E. Printer Report Details screen

The following information is displayed:

Item

Description

Printer Name

Displays the printer serial number or registered name.

If you want to change the printer name, click > Configuration Manager, select a printer from the Printer List > Edit. If you do not change the name, the serial number is displayed.

Total Print Area

Displays the print volume for each printer. The legend is the same as “Total Print Area” on the Printer Report screen.

Operation Results

Displays the operating rate for printers in a donut chart. The legend is the same as “Operation Results” on the Printer Report screen.

The donut chart displays the percentage that the printer was printing.

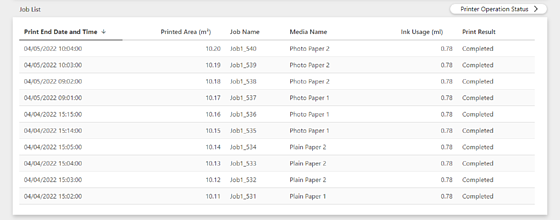

F. Job List

The following information is displayed. If there are no jobs, a list with no values is displayed. When you click on the header item, the contents are sorted by that item.

Item

Description

Print End Date and Time

Displays the date and time when printing was completed.

Printed Area(m²/ft²)

Displays the number of printed pages. When you select Number of Jobs, m, m², or imp. as the Unit, m² is displayed. When you select ft or ft², ft² is displayed.

Job Name

Displays the printed job name.

If the job name cannot be acquired, or the job name consists of one space, "-----" is displayed.

Media Name

Displays the media name.

Ink Usage(ml)

Displays ink usage estimate in ml for each print job.

Print Result

Displays whether the print result was successful.
