Product name |
PowerLite W56S+ |
|
|
Dimensions |
309 (W) × 90 (H) × 282 (D) mm (not including raised section) |
|
|
LCD panel size |
0.59" |
|
|
Display method |
3LCD |
|
|
Number of pixels |
WXGA (1,280 (W) × 800 (H) dots) × 3 |
|
|
Screen resolution |
1,024,000 pixels (1,280 × 800) |
|
|
Focus adjustment |
Manual |
|
|
Zoom adjustment |
1 to 1.35 (Digital Zoom) |
|
|
Lamp |
UHE lamp, 230 W Model No.: ELPLP97 |
|
|
Lamp life |
High Power Consumption mode: Up to 6,500 hours Medium Power Consumption mode: Up to 10,000 hours ECO Power Consumption mode: Up to 17,000 hours |
|
|
Air filter maintenance cycle |
10,000 hours |
|
|
Max. audio output |
16 W |
|
|
Speaker |
1 |
|
|
Power supply |
100-240V AC±10% 50/60Hz 3.6 - 1.7 A |
|
|
Power consumption (100 to 120 V area) |
Operating: 349 W |
|
|
Power consumption (220 to 240 V area) |
Operating: 332 W |
|
|
Standby power consumption |
Communication On: 2.0 W Communication Off: 0.3 W |
|
|
Operating altitude |
Altitude 0 to 3,048 m |
|
|
Operating temperature * |
Altitude of 0 to 2,286 m: +5 to +40°C (No condensation) Altitude of 2,287 to 3,048 m: +5 to +35°C (Humidity of 20 to 80%, No condensation) |
|
|
Storage temperature |
-10 to +60°C (Humidity of 10 to 90%, No condensation) |
|
|
Mass |
Approx. 3.1 kg |
|
* Lamp brightness automatically dims if the surrounding temperature gets too high. (Approximately 35°C at an altitude of 0 to 2,286 m, and approximately 30°C at an altitude of 2,287 to 3,048 m; however, this may vary depending on the surrounding environment.)
This product is also designed for IT power distribution system with phase-to-phase voltage 230V.
The rating label is attached on the bottom of the projector.
This product is certified for wireless communication in Zambia. See the following URL for the certification number.

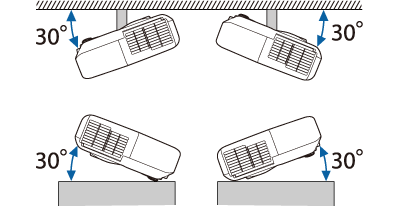

If you use the projector tilted at an angle of more than 30˚ it could be damaged and cause an accident.
