How To Scan

Scanning Images for Printing

Scanning images for printing in Full Auto Mode
Scanning images for printing in Home Mode
Scanning images for printing in Professional Mode

When you want to print scanned images on your EPSON ink jet printer or have prints made at your favorite film developing service, set the output resolution to 300 dpi. If you select a resolution higher than 300 dpi, printing takes a longer time but the output quality does not change.

You can also use the Photo Print utility in EPSON Smart Panel to scan images for printing. For more details, see Photo Print.

Scanning images for printing in Full Auto Mode

Follow the steps below to scan images for printing in Full Auto Mode.

Place your document, photo, or film on the scanner.

Placing Photos and Documents on the Scanner

Loading and Setting Film on the Scanner

Start EPSON Scan.

Starting EPSON Scan

Choosing and Changing the Scanning Mode

EPSON Scan starts to preview and recognize the document source and type.

Click Pause, then click Options.

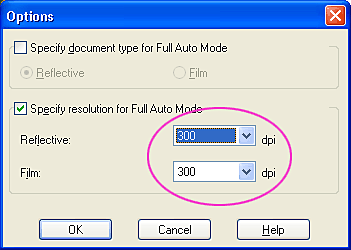

Click the Specify resolution for Full Auto Mode check box to select it.

Select 300 dpi from the list for Reflective or Film, depending on your source, and then click OK.

Click Scan. EPSON Scan starts scanning.

The scanned images are sent to the application or saved to the specified folder.

Note:

If EPSON Scan cannot recognize the correct document source, you can specify the document type in the Options dialog box. For details, see the EPSON Scan online help.

Depending on the image you want to scan, you may not get the results you expect. If this is the case, scan the image in Home Mode or Professional Mode.

If you cannot scan transparent materials in Full Auto Mode, switch to Home Mode or Professional Mode and use the marquee to select the scanning area. See You cannot scan the film from Full Auto Mode or the Thumbnail Preview for details.

[Top]

Scanning images for printing in Home Mode

Follow the steps below to scan images for printing in Home Mode.

Place your document, photo, or film on the scanner.

Placing Photos and Documents on the Scanner

Loading and Setting Film on the Scanner

Start EPSON Scan.

Starting EPSON Scan

Choosing and Changing the Scanning Mode

EPSON Scan automatically shows a preview of the image in the Preview window.

Note:

If the Auto preview check box is selected, preview scanning automatically starts when you access Home Mode. If this box is unchecked, a preview image does not appear automatically. Click Preview to manually preview the image.

Specify the Document Type and Image Type settings that are appropriate for your image.

Select Printer as the Destination. If you'd like to preview the images again, click Preview.

Select a Target Size from the list to specify a size for your scanned image. You can also make adjustments using the image quality adjustment tools.

Click Scan. EPSON Scan starts scanning.

The scanned images are sent to the application or saved to the specified folder.

[Top]

Scanning images for printing in Professional Mode

Follow the steps below to scan images for printing in Professional Mode.

Place your document, photo, or film on the scanner.

Placing Photos and Documents on the Scanner

Loading and Setting Film on the Scanner

Start EPSON Scan.

Starting EPSON Scan

Choosing and Changing the Scanning Mode

The following window appears.

Specify the Original and Image Type settings to match your image.

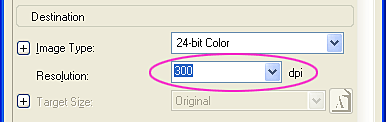

Select 300 dpi from the Resolution list.

Click Preview to preview the image.

Choose a Target Size from the list to specify the output size of the scanned image. You can also make adjustments using the image quality adjustment tools.

Click Scan. EPSON Scan starts scanning.

The scanned images are sent to the application or saved to the specified folder.
