Product name |
EX9270/PowerLite 1290/PowerLite FH54+ |
|
|
Dimensions (W × H × D) |
12.2 × 3.5 × 11.1 inches (309 × 90 × 282 mm) (not including raised section) |
|
|
LCD panel size |
0.62" |
|
|
Display method |
3LCD |
|
|
Number of pixels |
Full HD (1,920 (W) × 1,080 (H) dots) × 3 |
|
|
Screen resolution |
2,073,600 pixels (1,920 × 1,080) |
|
|
Focus adjustment |
Manual |
|
|
Zoom adjustment |
1 to 1.62 (Optical Zoom) |
|
|
Lamp |
UHE lamp, 230 W Model No.: ELPLP97 |
|
|
Lamp life |
High Power Consumption mode: Up to 5,500 hours ECO Power Consumption mode: Up to 12,000 hours |
|
|
Air filter maintenance cycle |
10,000 hours |
|
|
Max. audio output |
16 W |
|
|
Speaker |
1 |
|
|
Power supply |
100-240V AC±10% 50/60Hz 3.6 - 1.7 A |
|
|
Power consumption (100 to 120 V area) |
Operating: 349 W |
|
|
Power consumption (220 to 240 V area) |
Operating: 332 W |
|
|
Standby power consumption |
0.3 W |
|
|
Operating altitude |
Altitude 0 to 10,000 feet (3,048 m) |
|
|
Operating temperature * |
Altitude of 0 to 7,500 feet (2,286 m): 41 to 104°F (5 to 40°C) (No condensation) Altitude of 7,500 to 10,000 feet (2,287 to 3,048 m): 41 to 95°F (5 to 35°C) (Humidity of 20 to 80%, No condensation) |
|
|
Storage temperature |
14 to 140°F (-10 to 60°C) (Humidity of 10 to 90%, No condensation) |
|
|
Mass |
Approx. 6.8 lb (3.1 kg) |
|
* Lamp brightness automatically dims if the surrounding temperature gets too high. (Approximately 95°F (35°C) at an altitude of 0 to 7,500 feet (2,286 m), and approximately 86°F (30°C) at an altitude of 7,500 to 10,000 feet (2,287 to 3,048 m); however, this may vary depending on the surrounding environment.)
This product is also designed for IT power distribution system with phase-to-phase voltage 230V.
The rating label is attached on the bottom of the projector.
This product is certified for wireless communication in Zambia. See the following URL for the certification number.
https://download2.ebz.epson.net/sec_pubs_visual/zicta/
|
Product name |
PowerLite 994F |
|
|
Dimensions (W × H × D) |
12.2 × 3.5 × 11.1 inches (309 × 90 × 282 mm) (not including raised section) |
|
|
LCD panel size |
0.62" |
|
|
Display method |
3LCD |
|
|
Number of pixels |
Full HD (1,920 (W) × 1,080 (H) dots) × 3 |
|
|
Screen resolution |
2,073,600 pixels (1,920 × 1,080) |
|
|
Focus adjustment |
Manual |
|
|
Zoom adjustment |
1 to 1.62 (Optical Zoom) |
|
|
Lamp |
UHE lamp, 230 W Model No.: ELPLP97 |
|
|
Lamp life |
High Power Consumption mode: Up to 6,500 hours Medium Power Consumption mode: Up to 10,000 hours ECO Power Consumption mode: Up to 17,000 hours |
|
|
Air filter maintenance cycle |
10,000 hours |
|
|
Max. audio output |
16 W |
|
|
Speaker |
1 |
|
|
Power supply |
100-240V AC±10% 50/60Hz 3.6 - 1.7 A |
|
|
Power consumption (100 to 120 V area) |
Operating: 349 W |
|
|
Power consumption (220 to 240 V area) |
Operating: 332 W |
|
|
Standby power consumption |
Communication On: 2.0 W Communication Off: 0.3 W |
|
|
Operating altitude |
Altitude 0 to 10,000 feet (3,048 m) |
|
|
Operating temperature * |
Altitude of 0 to 7,500 feet (2,286 m): 41 to 104°F (5 to 40°C) (No condensation) Altitude of 7,500 to 10,000 feet (2,287 to 3,048 m): 41 to 95°F (5 to 35°C) (Humidity of 20 to 80%, No condensation) |
|
|
Storage temperature |
14 to 104°F (-10 to 60°C) (Humidity of 10 to 90%, No condensation) |
|
|
Mass |
Approx. 6.8 lb (3.1 kg) |
|
* Lamp brightness automatically dims if the surrounding temperature gets too high. (Approximately 95°F (35°C) at an altitude of 0 to 7,500 feet (2,286 m), and approximately 86°F (30°C) at an altitude of 7,500 to 10,000 feet (2,287 to 3,048 m); however, this may vary depending on the surrounding environment.)
This product is also designed for IT power distribution system with phase-to-phase voltage 230V.
The rating label is attached on the bottom of the projector.
This product is certified for wireless communication in Zambia. See the following URL for the certification number.
https://download2.ebz.epson.net/sec_pubs_visual/zicta/

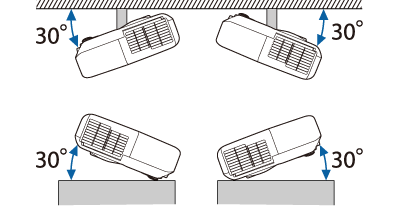

If you use the projector tilted at an angle of more than 30˚ it could be damaged and cause an accident.
