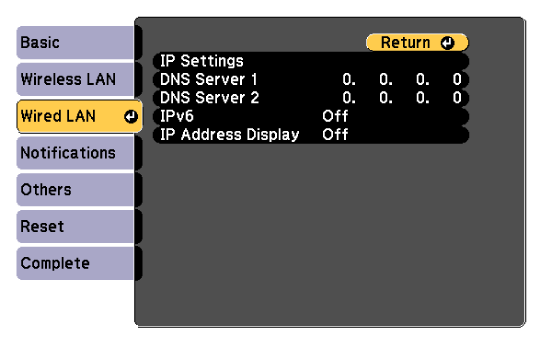

Settings on the Wired LAN menu let you select the wired LAN settings.
Network >
Network Configuration
>
Wired LAN
This menu is available only for models that support wired LAN projection.
|
Setting |
Options |
Description |
|---|---|---|
|
IP Settings |
DHCP IP Address Subnet Mask Gateway Address |
DHCP: set to On if your network assigns addresses automatically; set to Off to manually enter the network's IP Address, Subnet Mask, and Gateway Address using 0 to 255 for each address field. Do not use these addresses: 0.0.0.0, 127.x.x.x, 192.0.2.x, 192.168.48.x, 192.168.88.x or 224.0.0.0 through 255.255.255.255 (where x is a number from 0 to 255) for IP Address, 255.255.255.255 or 0.0.0.0 through 254.255.255.255 for Subnet Mask, and 0.0.0.0, 127.x.x.x or 224.0.0.0 through 255.255.255.255 for Gateway Address. |
|
DNS Server 1 DNS Server 2 |
Various IP addresses |
Enter the IP address for the DNS server, using 0 to 255 for each address field. The DNS server resolves the host name. You cannot use the following IP addresses: 127.x.x.x (where x is a number from 0 to 255). When these settings are not set and remain as 0.0.0.0, DNS server information is acquired using DHCP. After acquiring the information, the values remain as 0.0.0.0. |
|
IPv6 |
On Off |
Set to On if you want to connect the projector to the network using IPv6. IPv6 is supported to monitor and control the projector over a network using Epson Web Control and PJLink. (PJLink is only available for the PowerLite 994F.) |
|
IP Address Display |
On Off |
Select whether to display the IP address on the network standby screen. |
