Changing the Projection Mode

Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.

  • Front lets you project from a table in front of the screen.

  • Front/Upside Down flips the image over top-to-bottom to project upside-down from a wall mount or ceiling.

  • Rear flips the image horizontally to project from behind a translucent screen.

  • Rear/Upside Down flips the image over top-to-bottom and horizontally to project from a wall mount or ceiling and behind a translucent screen.

  1. Turn on the projector and display an image.

  2. Press the Menu button on the control panel or remote control.

  3. Select the Installation menu and press Enter.

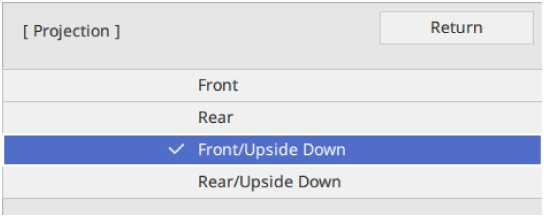

  4. Select Projection and press Enter.

  5. Select a projection mode and press Enter.

  6. Press Menu or Esc to exit the menus.
