Cable Layouts

Serial connection

  • Connector shape: D-Sub 9-pin (male)

  • Projector input port name: RS-232C

  • Cable type: Crossover (null modem) cable

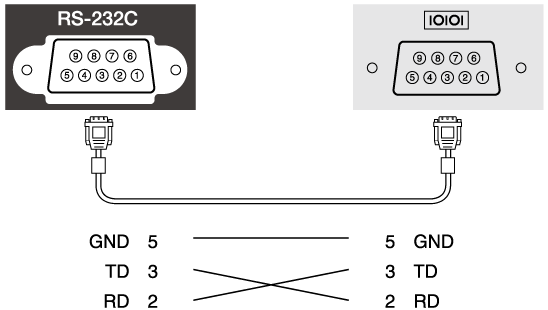

In the following illustration, the projector side is shown on the left, and the computer side on the right:

Signal name

Function

GND

Signal wire ground

TD

Transmit data

RD

Receive data

Communications protocol

  • Default baud rate setting: 9600 bps

  • Data length: 8 bit

  • Parity: None

  • Stop-bit: 1 bit

  • Flow control: None
