Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible Web browser. This lets you access the projector remotely.

  • Make sure the computer and projector are connected to the network. When projecting images using a wireless LAN, connect in Advanced connection mode.

  • You can use the following Web browsers.

    • Microsoft Edge (Windows)

    • Safari (Mac, iOS)

    • Chrome (Android)

  • While using the Web browser, do not connect using a proxy server. You cannot select all of the projector menu settings or control all projector functions using a Web browser.

  • If you set Standby Mode to Communication On, you can use a Web browser to select settings and control projection even if the projector is in standby mode (when the power is off).

    ECO > Standby Mode

  1. Make sure the projector is turned on.

  2. Make sure your computer or device is connected to the same network as the projector.

  3. Start your Web browser on the computer or device.

  4. Go to the Epson Web Control screen by entering the projector's IP address into the browser's address box. When entering an IPv6 address, wrap the address with [ and ].

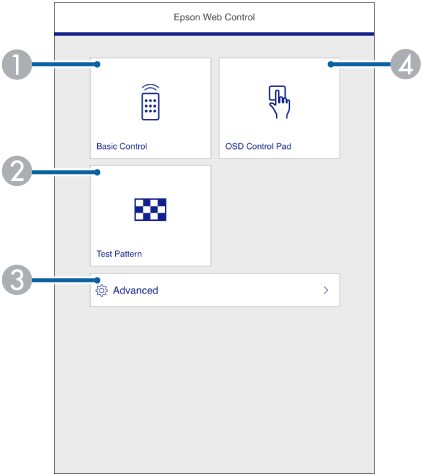

    You see the Epson Web Control screen.

    Controls the projector remotely.

    Displays a test pattern.

    Sets detailed projector settings.

    Operates the projector's menu settings with your finger or mouse.

  5. Select the option corresponding to the projector function you want to control.

    You may need to log in to access some of the options on the Epson Web Control screen. Set the following passwords first.

    • To access the Basic Control option, you need to log in using EPSONREMOTE as the user name and your Remote Password. (No password is set by default.)

      Set Basic Control to On in the projector's Network menu, and then set the password.

      Network > Network Configuration > Others > Basic Control

    • To access other options and save settings, you need to log in using EPSONWEB as the user name and your Web Control Password. (No password is set by default.)

      Set the password in the projector's Network menu.

      Network > Network Configuration > Basic > Web Control Password
