Saving Settings to Memory and Using Saved Settings

You can save customized settings and then select the saved settings whenever you want to use them.

  1. Turn on the projector and display an image.

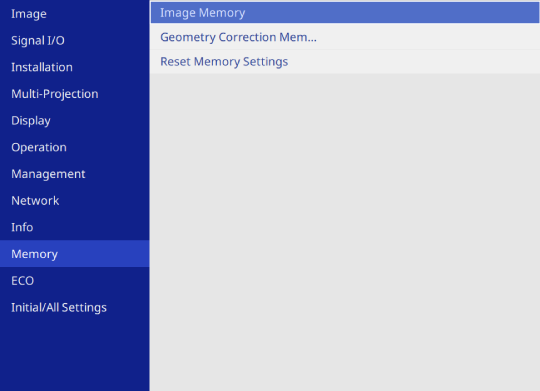

  2. Press the Menu button, select the Memory menu, and press Enter.

  3. Select Image Memory then press Enter.

  4. Select one of the following options:

    • Save Memory lets you save your current settings to memory (10 memories with different names are available).

      • You can save the following settings:

        • Image menu settings for each color mode

        • Video Range in the Signal I/O menu

        • Light Source Mode and Brightness Level in the Operation menu

          Operation > Light Source Brightness Control > Light Source Mode

          Operation > Light Source Brightness Control > Brightness Level

        • Color Matching in the Multi-Projection menu

          Multi-Projection > Screen Matching > Color Matching

      • A memory name that has already been used is indicated by a blue mark. Saving over a previously saved memory overwrites the settings with your current settings.

    • Load Memory lets you overwrite your current settings with saved settings.

    • Rename Memory lets you rename a saved memory.

    • Erase Memory lets you erase the selected memory settings.

  5. Press Menu or Esc to exit the menus.

  • The saved Color Mode is displayed on the right of the memory name.

  • To delete all saved memories, select Reset Memory Settings.
