When Using the Ceiling Mount ELPMB22

You can attach a safety wire to your projector for increased safety as shown.

Before you start, make sure you have firmly installed the ELPMB22 ceiling mount on the projector and have the following items that are included in the safety wire set:

  • Safety wire × 1

  • Carabiner × 2

  • Wire clamp × 1

  • Attaching screw (M4 × 10 mm) × 1

For details on installing the ELPMB22, see the Ceiling Mount ELPMB22/ELPMB23 Instruction Manual.

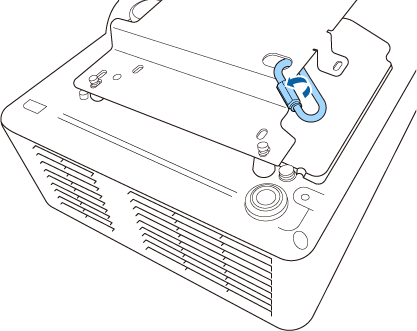

  1. Attach a carabiner to the hole on the ceiling mount, and tighten the carabiner lock.

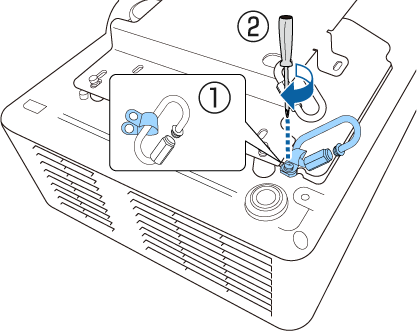

  2. Attach the wire clamp to another carabiner, and then use the screw to fix the wire clamp to the wire clamp fixing point on the projector.

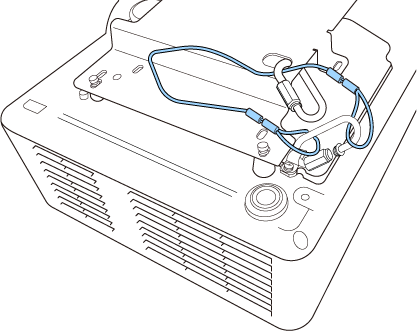

  3. Loop the safety wire through the carabiner on the ceiling mount, and attach both ends to the carabiner on the projector.

    Warning:

    Do not attach the safety wire to the security cable attachment point.

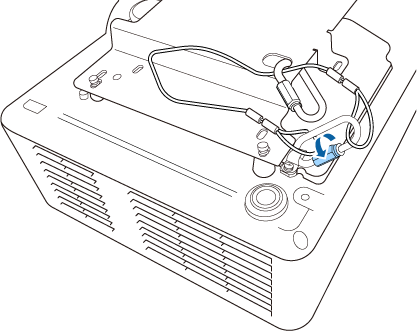

  4. Tighten the carabiner lock.
